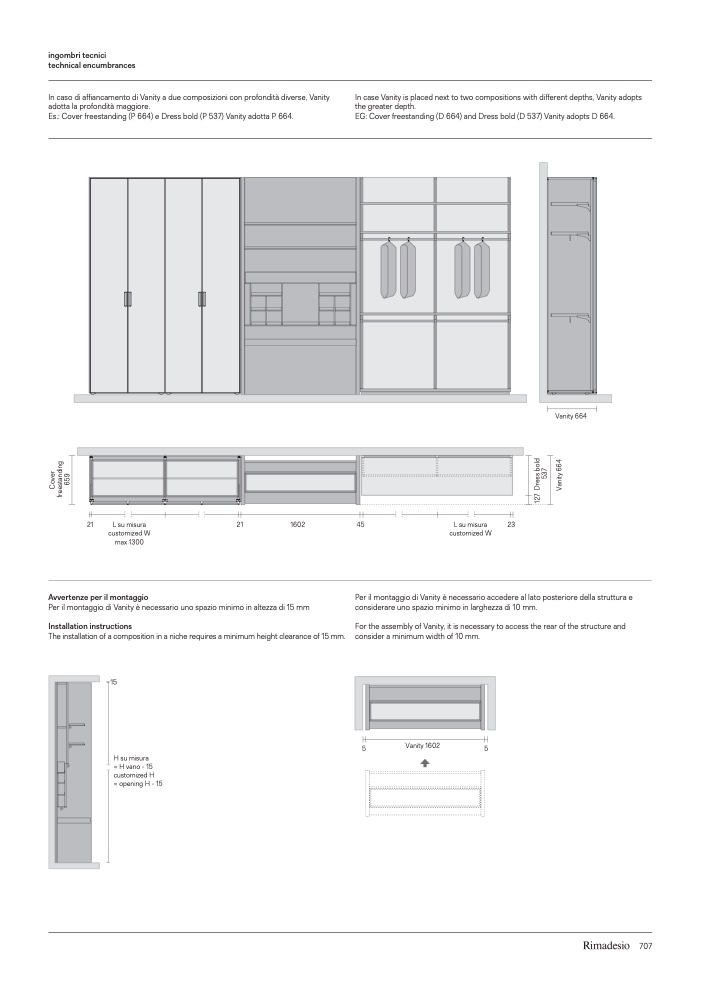

ingombri tecnici

technical encumbrances

In caso di affiancamento di Vanity a due composizioni con profondità diverse, Vanity

adotta la profondità maggiore.

Es.: Cover freestanding (P 664) e Dress bold (P 537) Vanity adotta P 664.

In case Vanity is placed next to two compositions with different depths, Vanity adopts

the greater depth.

EG: Cover freestanding (D 664) and Dress bold (D 537) Vanity adopts D 664.

Vanity 664

21

L su misura

customized W

max 1300

Avvertenze per il montaggio

21

1602

45

L su misura

23

customized W

Per il montaggio di Vanity è necessario uno spazio minimo in altezza di 15 mm

Installation instructions

The installation of a composition in a niche requires a minimum height clearance of 15 mm.

15

H su misura

= H vano - 15

customized H

= opening H - 15

Per il montaggio di Vanity è necessario accedere al lato posteriore della struttura e

considerare uno spazio minimo in larghezza di 10 mm.

For the assembly of Vanity, it is necessary to access the rear of the structure and

consider a minimum width of 10 mm.

5

Vanity 1602

5
