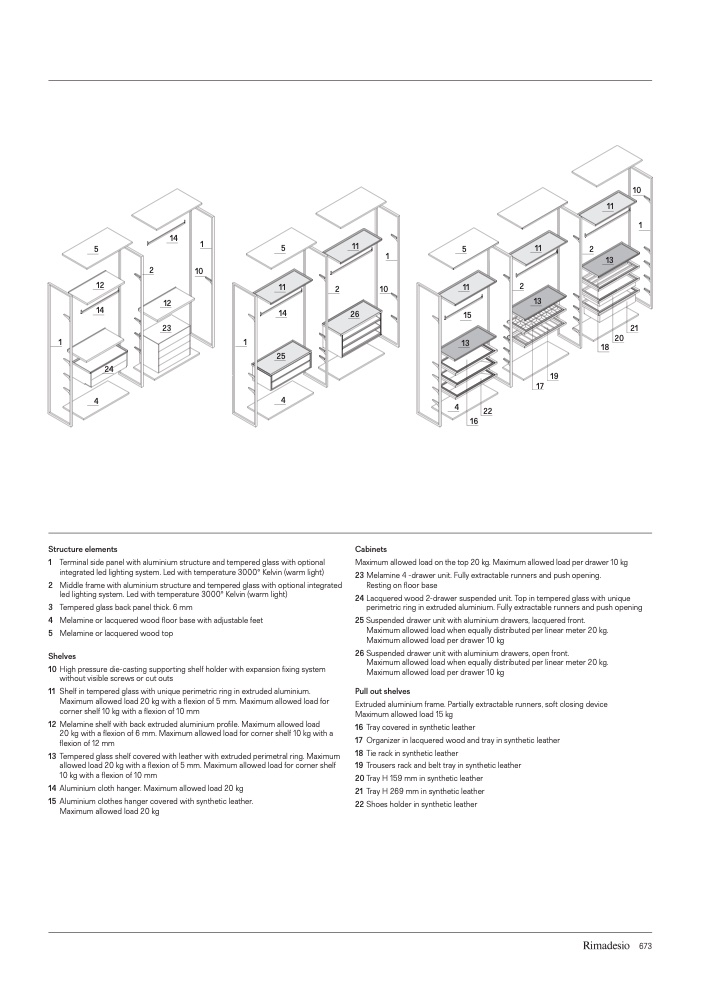

Structure elements
1 Terminal side panel with aluminium structure and tempered glass with optional
integrated led lighting system. Led with temperature 3000° Kelvin (warm light)
2 Middle frame with aluminium structure and tempered glass with optional integrated
led lighting system. Led with temperature 3000° Kelvin (warm light)
3 Tempered glass back panel thick. 6 mm
4 Melamine or lacquered wood floor base with adjustable feet
5 Melamine or lacquered wood top
Shelves
10 High pressure die-casting supporting shelf holder with expansion fixing system
without visible screws or cut outs
11 Shelf in tempered glass with unique perimetric ring in extruded aluminium.
Maximum allowed load 20 kg with a flexion of 5 mm. Maximum allowed load for
corner shelf 10 kg with a flexion of 10 mm
12 Melamine shelf with back extruded aluminium profile. Maximum allowed load
20 kg with a flexion of 6 mm. Maximum allowed load for corner shelf 10 kg with a
flexion of 12 mm
13 Tempered glass shelf covered with leather with extruded perimetral ring. Maximum
allowed load 20 kg with a flexion of 5 mm. Maximum allowed load for corner shelf
10kgwithaflexionof10mm
14 Aluminium cloth hanger. Maximum allowed load 20 kg
15 Aluminium clothes hanger covered with synthetic leather.
Maximum allowed load 20 kg
4
16
22
Cabinets
Maximum allowed load on the top 20 kg. Maximum allowed load per drawer 10 kg
23 Melamine 4 -drawer unit. Fully extractable runners and push opening.
Resting on floor base
24 Lacquered wood 2-drawer suspended unit. Top in tempered glass with unique
perimetric ring in extruded aluminium. Fully extractable runners and push opening
25 Suspended drawer unit with aluminium drawers, lacquered front.
Maximum allowed load when equally distributed per linear meter 20 kg.
Maximum allowed load per drawer 10 kg
26 Suspended drawer unit with aluminium drawers, open front.
Maximum allowed load when equally distributed per linear meter 20 kg.
Maximum allowed load per drawer 10 kg
Pull out shelves
Extruded aluminium frame. Partially extractable runners, soft closing device
Maximum allowed load 15 kg
16 Tray covered in synthetic leather
17 Organizer in lacquered wood and tray in synthetic leather
18 Tie rack in synthetic leather
19 Trousers rack and belt tray in synthetic leather
20 Tray H 159 mm in synthetic leather
21 Tray H 269 mm in synthetic leather
22 Shoes holder in synthetic leather
