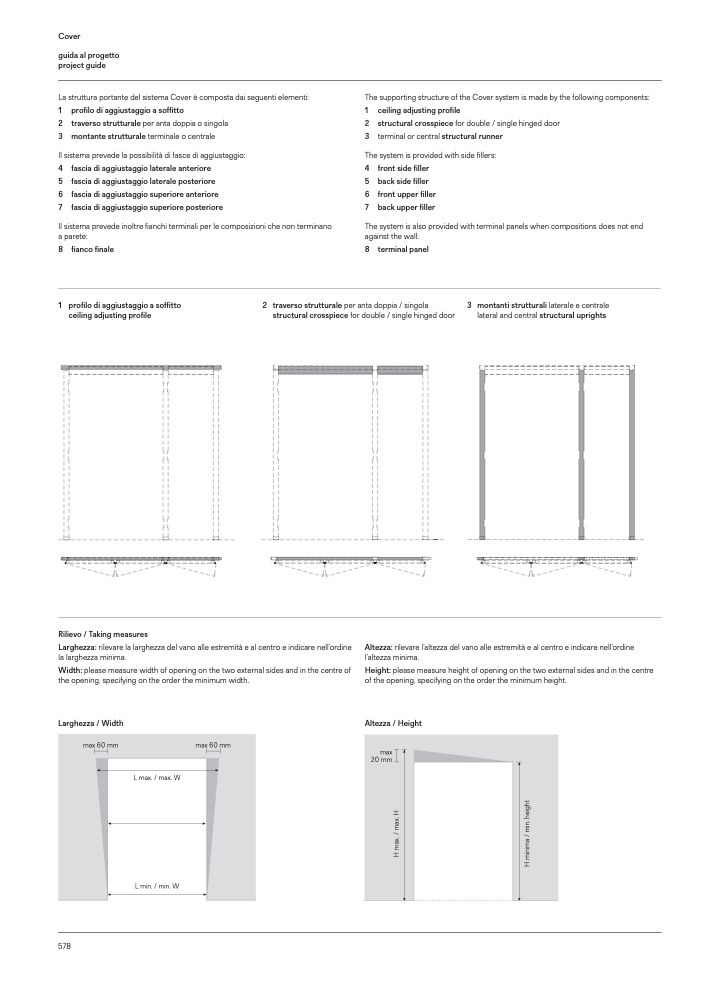

Cover

guida al progetto

project guide

La struttura portante del sistema Cover è composta dai seguenti elementi:

1 profilo di aggiustaggio a soffitto

2 traverso strutturale per anta doppia o singola

3 montante strutturale terminale o centrale

Il sistema prevede la possibilità di fasce di aggiustaggio:

4 fascia di aggiustaggio laterale anteriore

5 fascia di aggiustaggio laterale posteriore

6 fascia di aggiustaggio superiore anteriore

7 fascia di aggiustaggio superiore posteriore

Il sistema prevede inoltre fianchi terminali per le composizioni che non terminano

a parete:

8 fianco finale

1 profilodiaggiustaggioasoffitto

ceiling adjusting profile

The supporting structure of the Cover system is made by the following components:

1 ceiling adjusting profile

2 structural crosspiece for double / single hinged door

3 terminal or central structural runner

The system is provided with side fillers:

4 front side filler

5 back side filler

6 front upper filler

7 back upper filler

The system is also provided with terminal panels when compositions does not end

against the wall:

8 terminal panel

2 traversostrutturaleperantadoppia/singola

3 montantistrutturalilateraleecentrale

structural crosspiece for double / single hinged door

lateral and central structural uprights

Rilievo / Taking measures

Larghezza: rilevare la larghezza del vano alle estremità e al centro e indicare nell’ordine

la larghezza minima.

Width: please measure width of opening on the two external sides and in the centre of

the opening, specifying on the order the minimum width.

Altezza: rilevare l’altezza del vano alle estremità e al centro e indicare nell’ordine

l’altezza minima.

Height: please measure height of opening on the two external sides and in the centre

of the opening, specifying on the order the minimum height.

Altezza / Height

max

20 mm

Larghezza / Width

max 60 mm

max 60 mm

H

m

a

x

.

/

m

a

x

.

H

H

m

i

n

i

m

a

/

m

i

n

.

h

e

i

g

h

t

578

L max. / max. W

L min. / min. W
