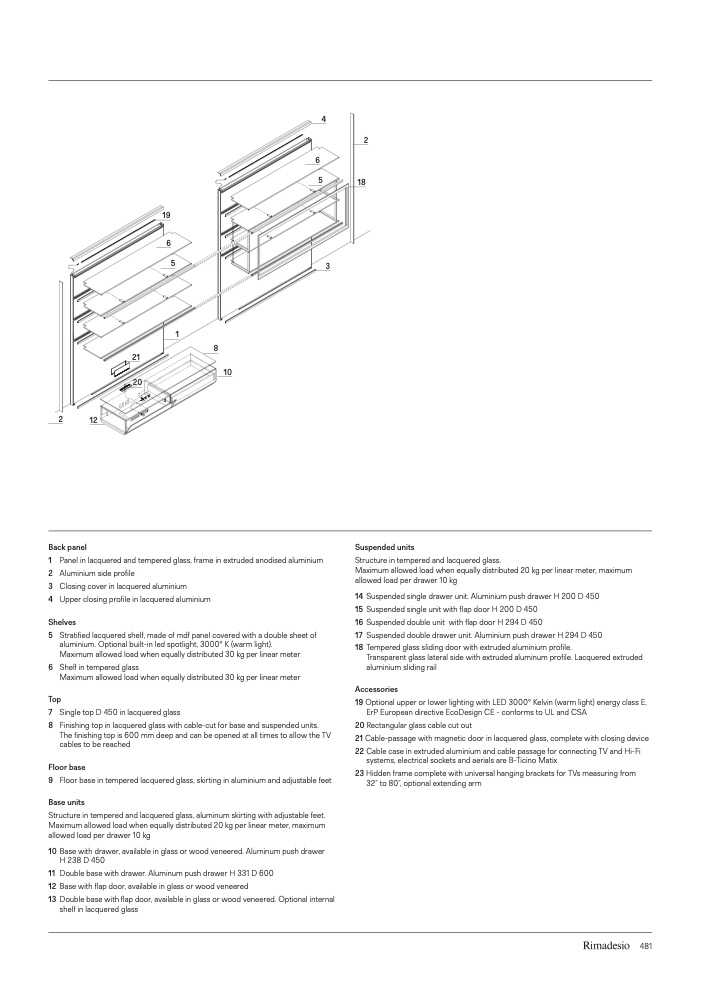

Back panel

1 Panel in lacquered and tempered glass, frame in extruded anodised aluminium

2 Aluminium side profile

3 Closing cover in lacquered aluminium

4 Upper closing profile in lacquered aluminium

Shelves

5 Stratified lacquered shelf, made of mdf panel covered with a double sheet of

aluminium. Optional built-in led spotlight, 3000° K (warm light).

Maximum allowed load when equally distributed 30 kg per linear meter

6 Shelf in tempered glass

Maximum allowed load when equally distributed 30 kg per linear meter

Top

7 Single top D 450 in lacquered glass

Suspended units

Structure in tempered and lacquered glass.

Maximum allowed load when equally distributed 20 kg per linear meter, maximum

allowed load per drawer 10 kg

14 Suspended single drawer unit. Aluminium push drawer H 200 D 450

15 Suspended single unit with flap door H 200 D 450

16 Suspended double unit with flap door H 294 D 450

17 Suspended double drawer unit. Aluminium push drawer H 294 D 450

18 Tempered glass sliding door with extruded aluminium profile.

Transparent glass lateral side with extruded aluminum profile. Lacquered extruded

aluminium sliding rail

Accessories

19 Optional upper or lower lighting with LED 3000° Kelvin (warm light) energy class E,

ErP European directive EcoDesign CE - conforms to UL and CSA

20 Rectangular glass cable cut out

21 Cable-passage with magnetic door in lacquered glass, complete with closing device

22 Cable case in extruded aluminium and cable passage for connecting TV and Hi-Fi

systems, electrical sockets and aerials are B-Ticino Matix

23 Hidden frame complete with universal hanging brackets for TVs measuring from

32” to 80”, optional extending arm

8 Finishing top in lacquered glass with cable-cut for base and suspended units.

The finishing top is 600 mm deep and can be opened at all times to allow the TV

cables to be reached

Floor base

9 Floor base in tempered lacquered glass, skirting in aluminium and adjustable feet

Base units

Structure in tempered and lacquered glass, aluminum skirting with adjustable feet.

Maximum allowed load when equally distributed 20 kg per linear meter, maximum

allowed load per drawer 10 kg

10 Base with drawer, available in glass or wood veneered. Aluminum push drawer

H238D450

11 Doublebasewithdrawer.AluminumpushdrawerH331D600

12 Base with flap door, available in glass or wood veneered

13 Double base with flap door, available in glass or wood veneered. Optional internal

shelf in lacquered glass
