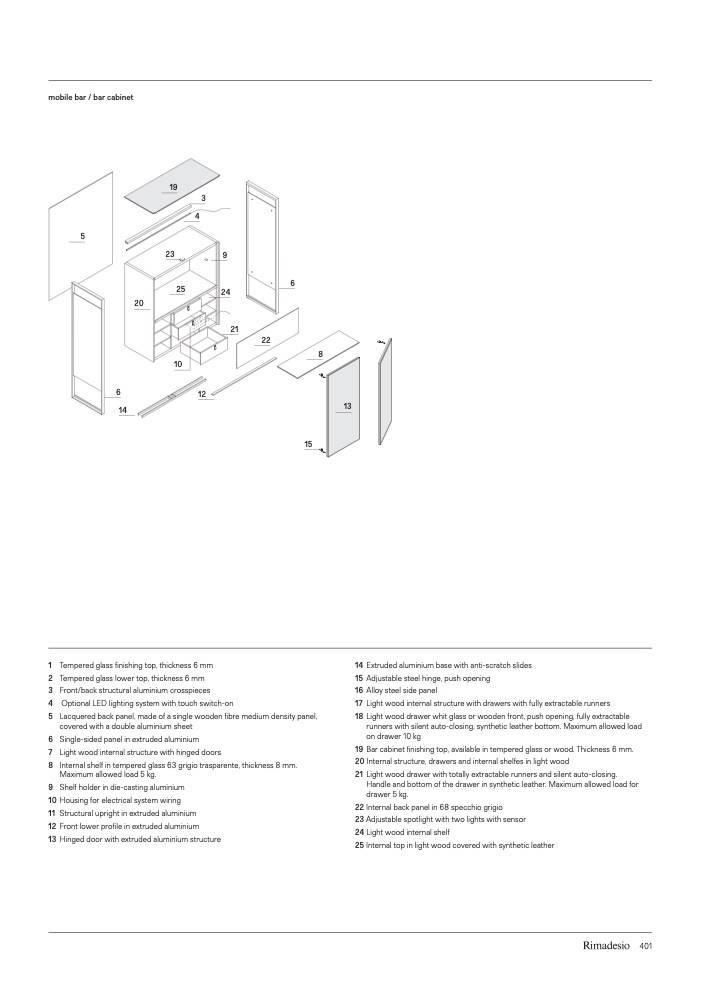

mobile bar / bar cabinet

5

19

3

4

23

9

6

14

10

12

1 Tempered glass finishing top, thickness 6 mm

2 Tempered glass lower top, thickness 6 mm

3 Front/back structural aluminium crosspieces

14 Extruded aluminium base with anti-scratch slides

15 Adjustable steel hinge, push opening

16 Alloy steel side panel

17 Light wood internal structure with drawers with fully extractable runners

18 Light wood drawer whit glass or wooden front, push opening, fully extractable

runners with silent auto-closing, synthetic leather bottom. Maximum allowed load

on drawer 10 kg

19 Bar cabinet finishing top, available in tempered glass or wood. Thickness 6 mm.

20 Internal structure, drawers and internal shelfes in light wood

21 Light wood drawer with totally extractable runners and silent auto-closing.

Handle and bottom of the drawer in synthetic leather. Maximum allowed load for

drawer 5 kg.

22 Internal back panel in 68 specchio grigio

23 Adjustable spotlight with two lights with sensor

24 Light wood internal shelf

25 Internal top in light wood covered with synthetic leather

25

20

6

4 Optional LED lighting system with touch switch-on

5 Lacquered back panel, made of a single wooden fibre medium density panel,

covered with a double aluminium sheet

6 Single-sided panel in extruded aluminium

7 Light wood internal structure with hinged doors

8 Internal shelf in tempered glass 63 grigio trasparente, thickness 8 mm.

Maximum allowed load 5 kg.

9 Shelf holder in die-casting aluminium

10 Housing for electrical system wiring

11 Structural upright in extruded aluminium

12 Front lower profile in extruded aluminium

13 Hinged door with extruded aluminium structure

24

21

22

15

8

13

401
