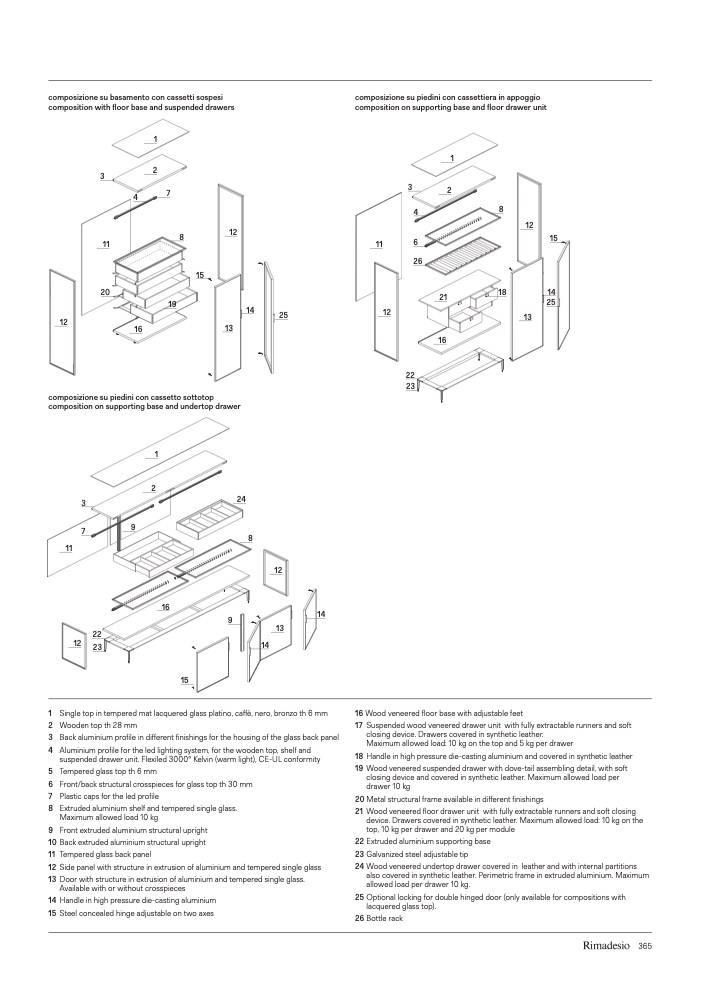

composizione su basamento con cassetti sospesi

composition with floor base and suspended drawers

composizione su piedini con cassettiera in appoggio

composition on supporting base and floor drawer unit

12

16

19

14

13

25

12

13

16

22

23

composizione su piedini con cassetto sottotop

composition on supporting base and undertop drawer

3

7

11

22

12

23

1

2

9

24

8

9

1

2

7

1

2

15

20

21

3

4

3

4

8

12

11

11

6

26

8

12

18

14

25

16

15

12

14

13

1 Single top in tempered mat lacquered glass platino, caffè, nero, bronzo th 6 mm

2 Wooden top th 28 mm

3 Back aluminium profile in different finishings for the housing of the glass back panel

4 Aluminium profile for the led lighting system, for the wooden top, shelf and

suspended drawer unit. Flexiled 3000° Kelvin (warm light), CE-UL conformity

5 Tempered glass top th 6 mm

6 Front/back structural crosspieces for glass top th 30 mm

7 Plastic caps for the led profile

8 Extruded aluminium shelf and tempered single glass.

Maximum allowed load 10 kg

9 Front extruded aluminium structural upright

10 Back extruded aluminium structural upright

11 Tempered glass back panel

12 Side panel with structure in extrusion of aluminium and tempered single glass

13 Door with structure in extrusion of aluminium and tempered single glass.

Available with or without crosspieces

14 Handle in high pressure die-casting aluminium

15 Steel concealed hinge adjustable on two axes

16 Wood veneered floor base with adjustable feet

17 Suspended wood veneered drawer unit with fully extractable runners and soft

closing device. Drawers covered in synthetic leather.

Maximum allowed load: 10 kg on the top and 5 kg per drawer

18 Handle in high pressure die-casting aluminium and covered in synthetic leather

19 Wood veneered suspended drawer with dove-tail assembling detail, with soft

closing device and covered in synthetic leather. Maximum allowed load per

drawer 10 kg

20 Metal structural frame available in different finishings

21 Wood veneered floor drawer unit with fully extractable runners and soft closing

device. Drawers covered in synthetic leather. Maximum allowed load: 10 kg on the

top, 10 kg per drawer and 20 kg per module

22 Extruded aluminium supporting base

23 Galvanized steel adjustable tip

24 Wood veneered undertop drawer covered in leather and with internal partitions

also covered in synthetic leather. Perimetric frame in extruded aluminium. Maximum

allowed load per drawer 10 kg.

25 Optional locking for double hinged door (only available for compositions with

lacquered glass top).

26 Bottle rack

14

15

365
