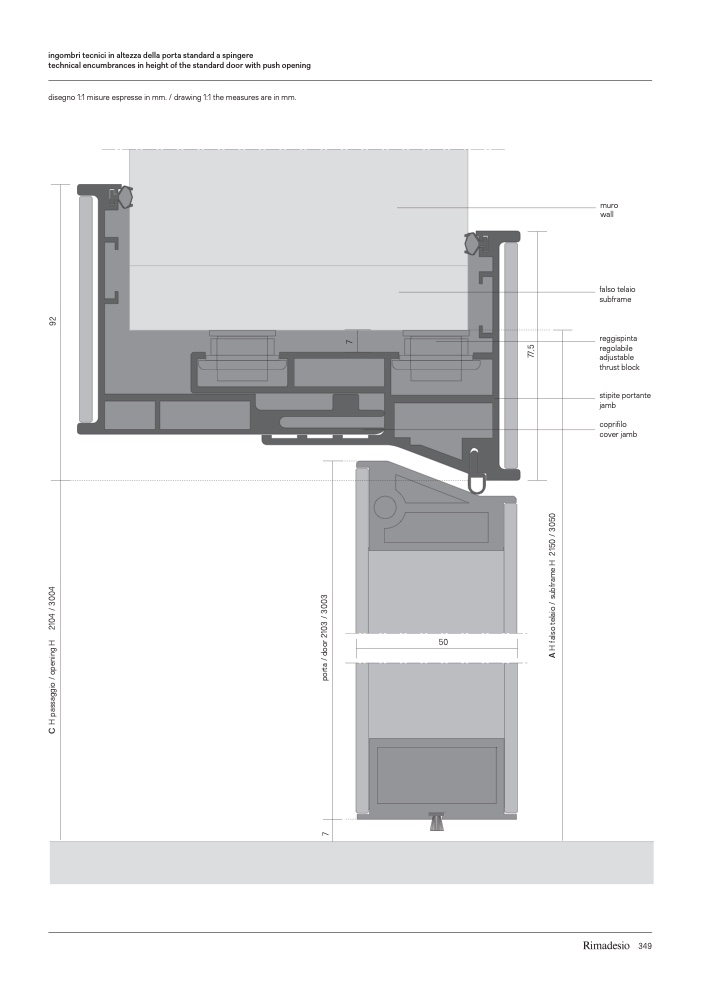

ingombri tecnici in altezza della porta standard a spingere
technical encumbrances in height of the standard door with push opening
disegno 1:1 misure espresse in mm. / drawing 1:1 the measures are in mm.
muro
wall
falso telaio
subframe
reggispinta
regolabile
adjustable
thrust block
stipite portante
jamb
coprifilo
cover jamb
50
349
7
p
o
r
t
a
/
d
o
o
r
2
1
0
3
/
3
0
0
3
