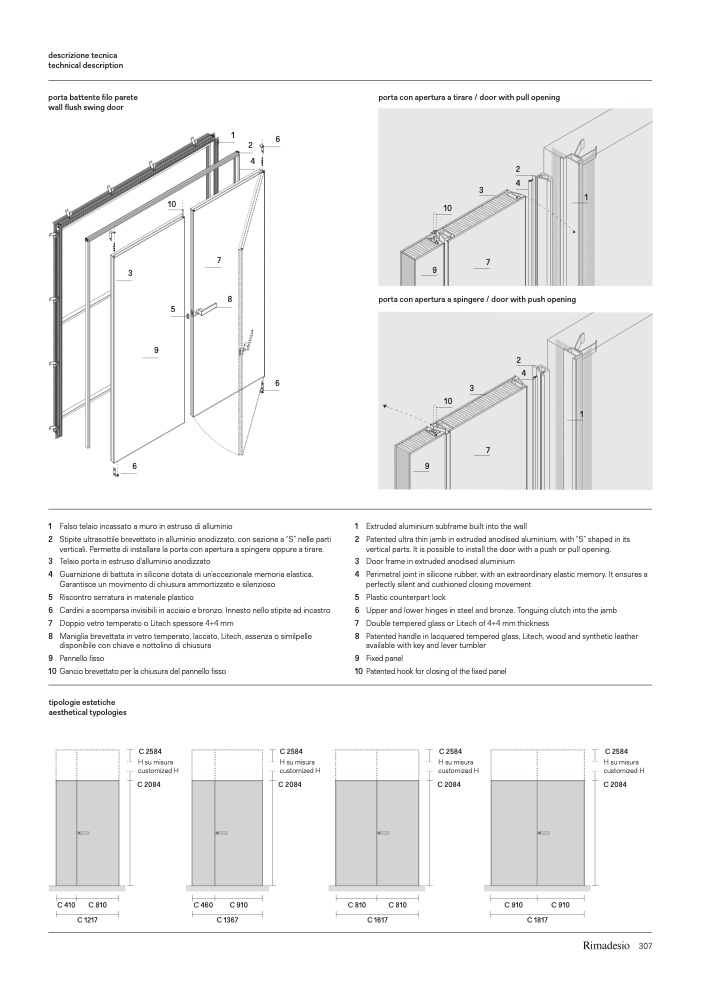

descrizione tecnica

technical description

porta battente filo parete

wall flush swing door

porta con apertura a tirare / door with pull opening

tipologie estetiche

aesthetical typologies

C 410

C 810

C 1217

C 460

C 910

C 1367

C 810

C 810

C 910

C 910

3

9

8

9

porta con apertura a spingere / door with push opening

2

4

10

5

2

4

3

7

1

7

1

2

6

4

6

3

10

7

6

9

1 Falso telaio incassato a muro in estruso di alluminio

2 Stipite ultrasottile brevettato in alluminio anodizzato, con sezione a “S” nelle parti

verticali. Permette di installare la porta con apertura a spingere oppure a tirare.

3 Telaio porta in estruso d’alluminio anodizzato

4 Guarnizione di battuta in silicone dotata di un’eccezionale memoria elastica.

Garantisce un movimento di chiusura ammortizzato e silenzioso

5 Riscontro serratura in materiale plastico

6 Cardini a scomparsa invisibili in acciaio e bronzo. Innesto nello stipite ad incastro

7 Doppio vetro temperato o Litech spessore 4+4 mm

8 Maniglia brevettata in vetro temperato, laccato, Litech, essenza o similpelle

disponibile con chiave e nottolino di chiusura

1 Extruded aluminium subframe built into the wall

2 Patented ultra thin jamb in extruded anodised aluminium, with “S” shaped in its

vertical parts. It is possible to install the door with a push or pull opening.

3 Door frame in extruded anodised aluminium

4 Perimetral joint in silicone rubber, with an extraordinary elastic memory. It ensures a

perfectly silent and cushioned closing movement

5 Plastic counterpart lock

6 Upper and lower hinges in steel and bronze. Tonguing clutch into the jamb

7 Double tempered glass or Litech of 4+4 mm thickness

8 Patented handle in lacquered tempered glass, Litech, wood and synthetic leather

available with key and lever tumbler

9 Pannello fisso

10 Gancio brevettato per la chiusura del pannello fisso

9 Fixed panel

10 Patented hook for closing of the fixed panel

C 2584

H su misura

customized H

C 2084

C 2584

H su misura

customized H

C 2084

C 2584

H su misura

customized H

C 2084

C 2584

H su misura

customized H

C 2084

C 1617

C 1817

10

1

307
