Vela

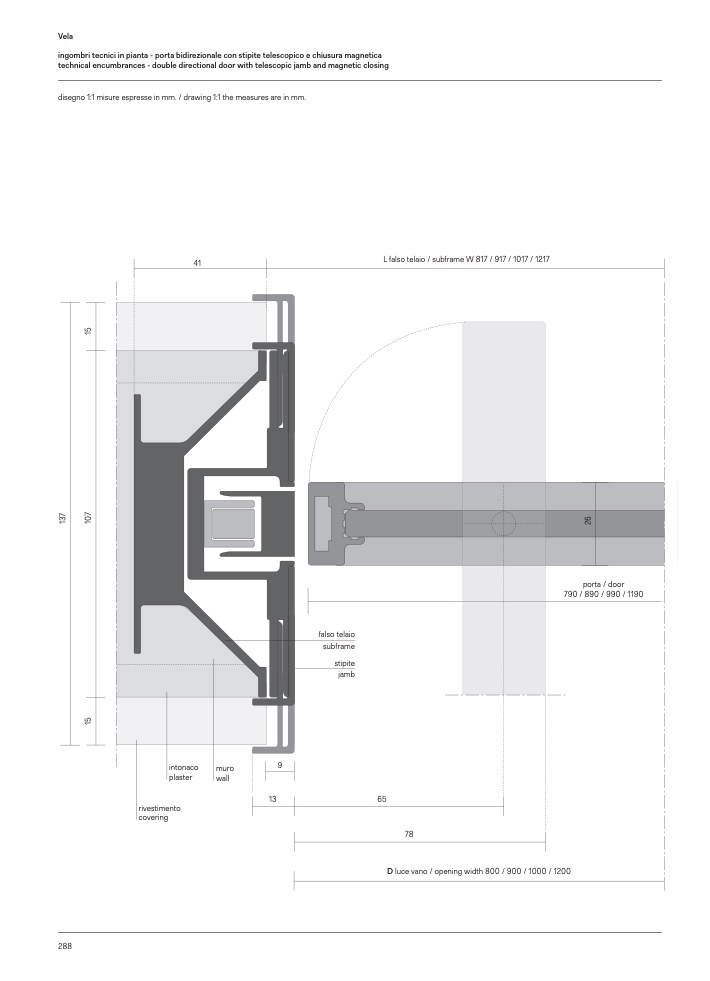

ingombri tecnici in pianta - porta bidirezionale con stipite telescopico e chiusura magnetica

technical encumbrances - double directional door with telescopic jamb and magnetic closing

disegno 1:1 misure espresse in mm. / drawing 1:1 the measures are in mm.

41

L falso telaio / subframe W 817 / 917 / 1017 / 1217

porta / door

790/890/990/1190

falso telaio

subframe

stipite

jamb

intonaco

muro

plaster

wall

rivestimento

covering

9

13

65

78

D luce vano / opening width 800 / 900 / 1000 / 1200

288

1

3

7

1

5

1

0

7

1

5

2

6
