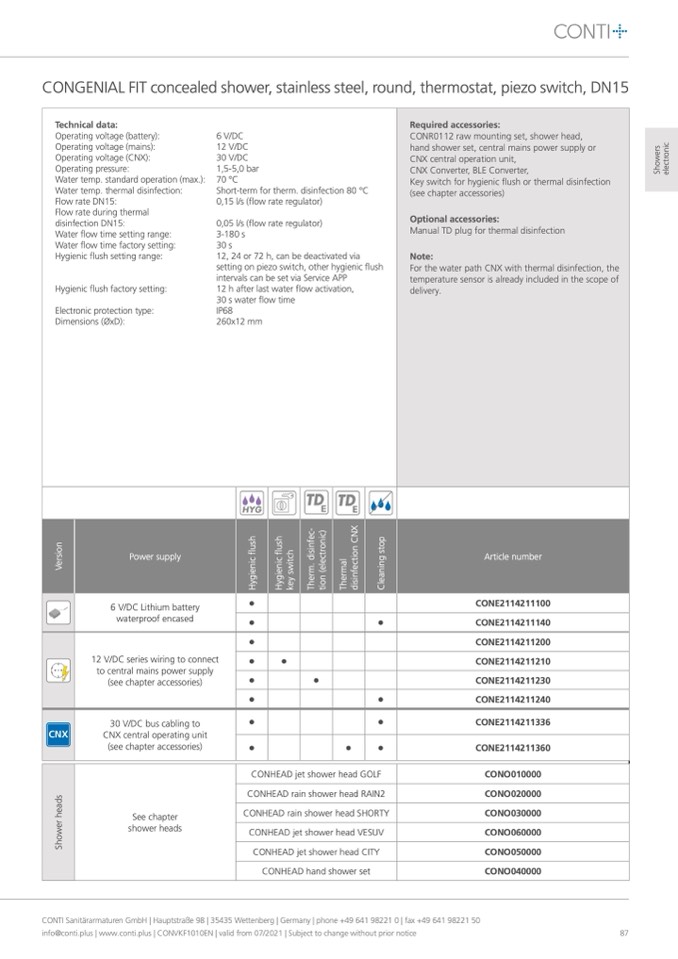

CONGENIAL FIT concealed shower, stainless steel, round, thermostat, piezo switch, DN15

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating voltage (CNX):

Operating pressure:

Water temp. standard operation (max.):

Water temp. thermal disinfection:

Flow rate DN15:

Flow rate during thermal

disinfection DN15:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Electronic protection type:

Dimensions (ØxD):

6 V/DC

12 V/DC

30 V/DC

1,5-5,0 bar

70 °C

Short-term for therm. disinfection 80 °C

0,15 l/s (flow rate regulator)

0,05 l/s (flow rate regulator)

3-180 s

30 s

12, 24 or 72 h, can be deactivated via

setting on piezo switch, other hygienic flush

intervals can be set via Service APP

12 h after last water flow activation,

30 s water flow time

IP68

260x12 mm

Required accessories:

CONR0112 raw mounting set, shower head,

hand shower set, central mains power supply or

CNX central operation unit,

CNX Converter, BLE Converter,

Key switch for hygienic flush or thermal disinfection

(see chapter accessories)

Optional accessories:

Manual TD plug for thermal disinfection

Note:

For the water path CNX with thermal disinfection, the

temperature sensor is already included in the scope of

delivery.

Power supply

Article number

6 V/DC Lithium battery

waterproof encased

•

CONE2114211100

•

•

CONE2114211140

12 V/DC series wiring to connect

to central mains power supply

(see chapter accessories)

•

CONE2114211200

•

•

CONE2114211210

•

•

CONE2114211230

•

•

CONE2114211240

30 V/DC bus cabling to

CNX central operating unit

(see chapter accessories)

•

•

CONE2114211336

•

•

•

CONE2114211360

See chapter

shower heads

CONHEAD jet shower head GOLF

CONO010000

CONHEAD rain shower head RAIN2

CONO020000

CONHEAD rain shower head SHORTY

CONO030000

CONHEAD jet shower head VESUV

CONO060000

CONHEAD jet shower head CITY

CONO050000

CONHEAD hand shower set

CONO040000

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
