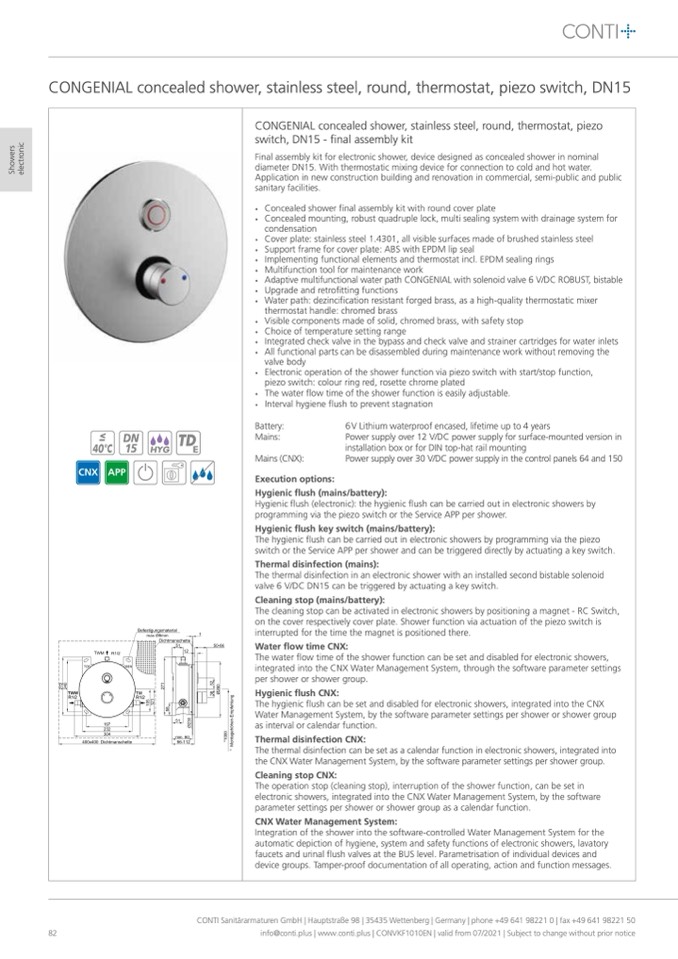

CONGENIAL concealed shower, stainless steel, round, thermostat, piezo switch, DN15

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c

82

Hygienic flush (mains/battery):

Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by

programming via the piezo switch or the Service APP per shower.

Hygienic flush key switch (mains/battery):

The hygienic flush can be carried out in electronic showers by programming via the piezo

switch or the Service APP per shower and can be triggered directly by actuating a key switch.

Thermal disinfection (mains):

The thermal disinfection in an electronic shower with an installed second bistable solenoid

valve 6 V/DC DN15 can be triggered by actuating a key switch.

Cleaning stop (mains/battery):

The cleaning stop can be activated in electronic showers by positioning a magnet - RC Switch,

on the cover respectively cover plate. Shower function via actuation of the piezo switch is

interrupted for the time the magnet is positioned there.

Water flow time CNX:

The water flow time of the shower function can be set and disabled for electronic showers,

integrated into the CNX Water Management System, through the software parameter settings

per shower or shower group.

Hygienic flush CNX:

The hygienic flush can be set and disabled for electronic showers, integrated into the CNX

Water Management System, by the software parameter settings per shower or shower group

as interval or calendar function.

Thermal disinfection CNX:

The thermal disinfection can be set as a calendar function in electronic showers, integrated into

the CNX Water Management System, by the software parameter settings per shower group.

Cleaning stop CNX:

The operation stop (cleaning stop), interruption of the shower function, can be set in

electronic showers, integrated into the CNX Water Management System, by the software

parameter settings per shower or shower group as a calendar function.

CNX Water Management System:

Integration of the shower into the software-controlled Water Management System for the

automatic depiction of hygiene, system and safety functions of electronic showers, lavatory

faucets and urinal flush valves at the BUS level. Parametrisation of individual devices and

device groups. Tamper-proof documentation of all operating, action and function messages.

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

CONGENIAL concealed shower, stainless steel, round, thermostat, piezo

switch, DN15 - final assembly kit

Final assembly kit for electronic shower, device designed as concealed shower in nominal

diameter DN15. With thermostatic mixing device for connection to cold and hot water.

Application in new construction building and renovation in commercial, semi-public and public

sanitary facilities.

•

Concealed shower final assembly kit with round cover plate

•

Concealed mounting, robust quadruple lock, multi sealing system with drainage system for

condensation

•

Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel

•

Support frame for cover plate: ABS with EPDM lip seal

•

Implementing functional elements and thermostat incl. EPDM sealing rings

•

Multifunction tool for maintenance work

•

Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable

•

Upgrade and retrofitting functions

•

Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer

thermostat handle: chromed brass

•

Visible components made of solid, chromed brass, with safety stop

•

Choice of temperature setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

All functional parts can be disassembled during maintenance work without removing the

valve body

•

Electronic operation of the shower function via piezo switch with start/stop function,

piezo switch: colour ring red, rosette chrome plated

•

The water flow time of the shower function is easily adjustable.

•

Interval hygiene flush to prevent stagnation

Battery:

Mains:

Mains (CNX):

Execution options:

6 V Lithium waterproof encased, lifetime up to 4 years

Power supply over 12 V/DC power supply for surface-mounted version in

installation box or for DIN top-hat rail mounting

Power supply over 30 V/DC power supply in the control panels 64 and 150
