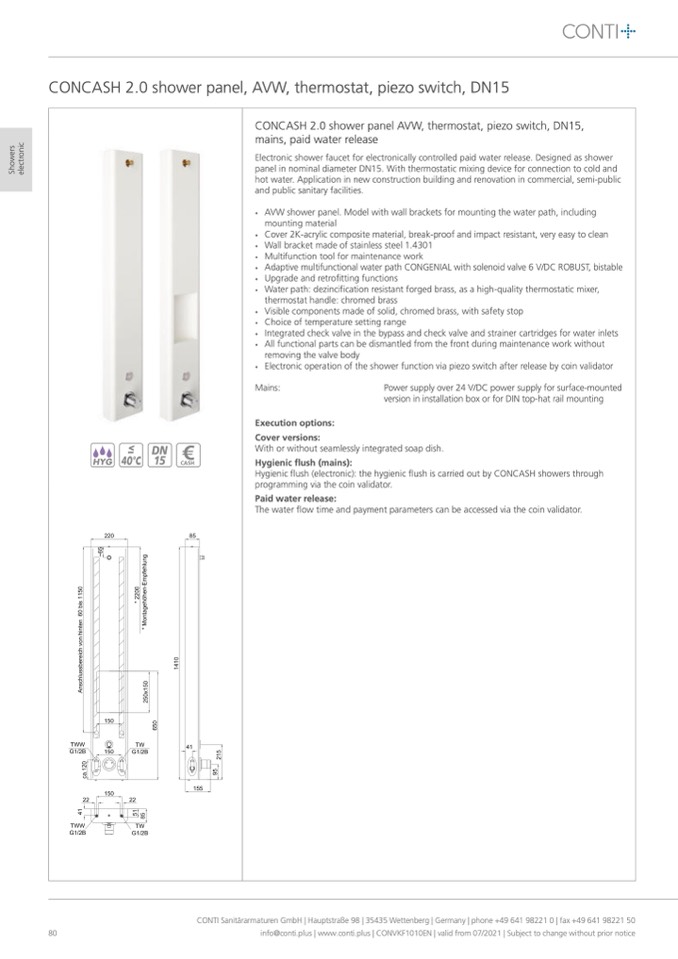

CONCASH 2.0 shower panel, AVW, thermostat, piezo switch, DN15

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c

80

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

CASH

CONCASH 2.0 shower panel AVW, thermostat, piezo switch, DN15,

mains, paid water release

Electronic shower faucet for electronically controlled paid water release. Designed as shower

panel in nominal diameter DN15. With thermostatic mixing device for connection to cold and

hot water. Application in new construction building and renovation in commercial, semi-public

and public sanitary facilities.

•

AVW shower panel. Model with wall brackets for mounting the water path, including

mounting material

•

Cover 2K-acrylic composite material, break-proof and impact resistant, very easy to clean

•

Wall bracket made of stainless steel 1.4301

•

Multifunction tool for maintenance work

•

Adaptive multifunctional water path CONGENIAL with solenoid valve 6 V/DC ROBUST, bistable

•

Upgrade and retrofitting functions

•

Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer,

thermostat handle: chromed brass

•

Visible components made of solid, chromed brass, with safety stop

•

Choice of temperature setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

All functional parts can be dismantled from the front during maintenance work without

removing the valve body

•

Electronic operation of the shower function via piezo switch after release by coin validator

Mains:

Power supply over 24 V/DC power supply for surface-mounted

version in installation box or for DIN top-hat rail mounting

Execution options:

Cover versions:

With or without seamlessly integrated soap dish.

Hygienic flush (mains):

Hygienic flush (electronic): the hygienic flush is carried out by CONCASH showers through

programming via the coin validator.

Paid water release:

The water flow time and payment parameters can be accessed via the coin validator.
