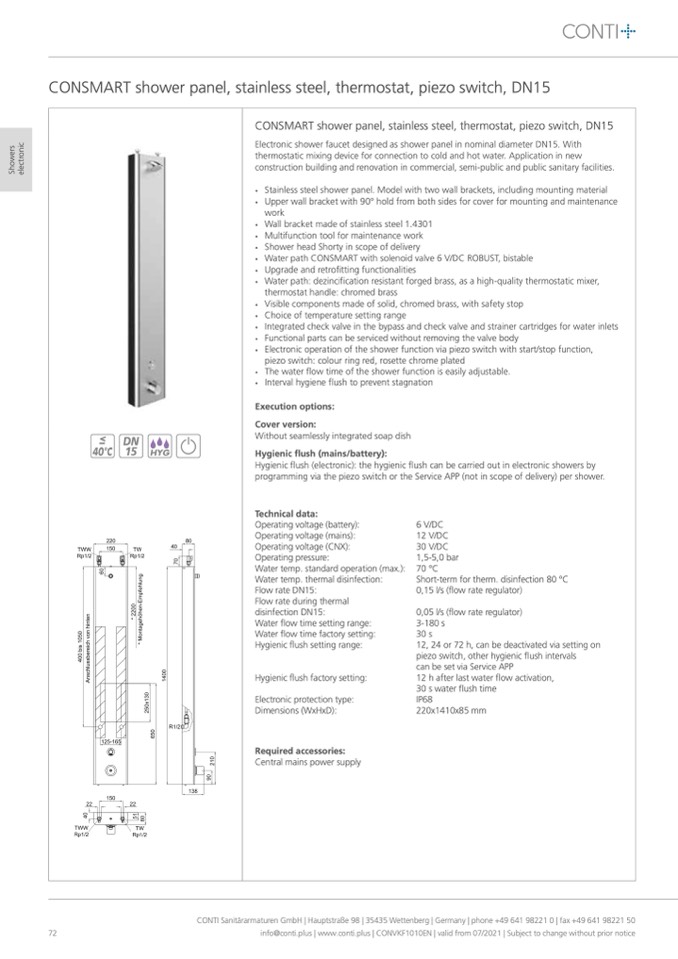

CONSMART shower panel, stainless steel, thermostat, piezo switch, DN15

CONSMART shower panel, stainless steel, thermostat, piezo switch, DN15

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c

72

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Electronic shower faucet designed as shower panel in nominal diameter DN15. With

thermostatic mixing device for connection to cold and hot water. Application in new

construction building and renovation in commercial, semi-public and public sanitary facilities.

•

Stainless steel shower panel. Model with two wall brackets, including mounting material

•

Upper wall bracket with 90° hold from both sides for cover for mounting and maintenance

work

•

Wall bracket made of stainless steel 1.4301

•

Multifunction tool for maintenance work

•

Shower head Shorty in scope of delivery

•

Water path CONSMART with solenoid valve 6 V/DC ROBUST, bistable

•

Upgrade and retrofitting functionalities

•

Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer,

thermostat handle: chromed brass

•

Visible components made of solid, chromed brass, with safety stop

•

Choice of temperature setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

Functional parts can be serviced without removing the valve body

•

Electronic operation of the shower function via piezo switch with start/stop function,

piezo switch: colour ring red, rosette chrome plated

•

The water flow time of the shower function is easily adjustable.

•

Interval hygiene flush to prevent stagnation

Execution options:

Cover version:

Without seamlessly integrated soap dish

Hygienic flush (mains/battery):

Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by

programming via the piezo switch or the Service APP (not in scope of delivery) per shower.

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating voltage (CNX):

Operating pressure:

Water temp. standard operation (max.):

Water temp. thermal disinfection:

Flow rate DN15:

Flow rate during thermal

disinfection DN15:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Electronic protection type:

Dimensions (WxHxD):

Required accessories:

Central mains power supply

6 V/DC

12 V/DC

30 V/DC

1,5-5,0 bar

70 °C

Short-term for therm. disinfection 80 °C

0,15 l/s (flow rate regulator)

0,05 l/s (flow rate regulator)

3-180 s

30s

12, 24 or 72 h, can be deactivated via setting on

piezo switch, other hygienic flush intervals

can be set via Service APP

12 h after last water flow activation,

30 s water flush time

IP68

220x1410x85 mm
