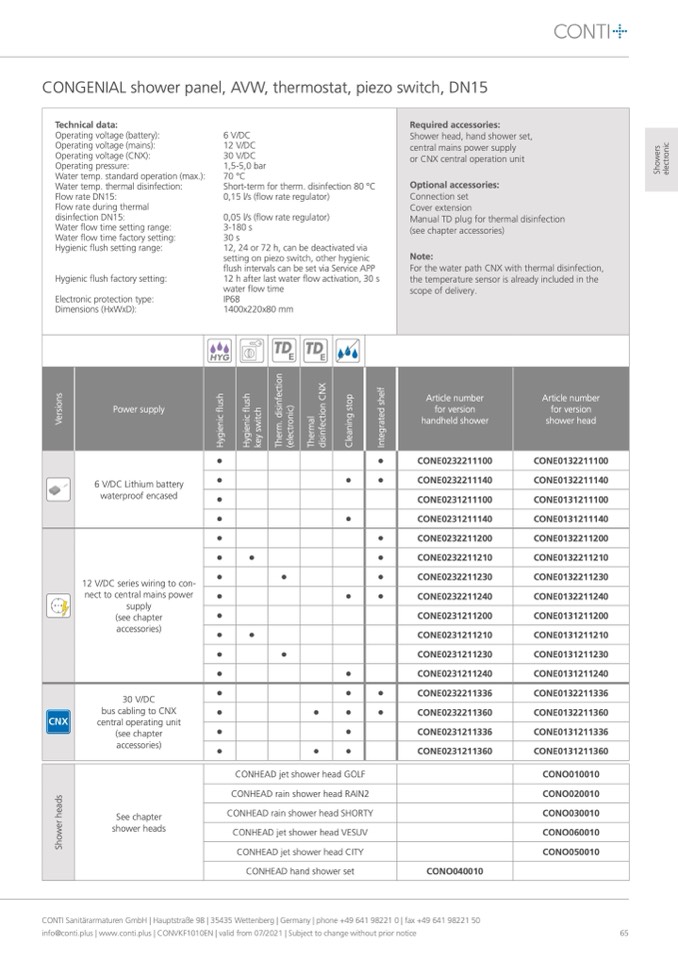

CONGENIAL shower panel, AVW, thermostat, piezo switch, DN15

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating voltage (CNX):

Operating pressure:

Water temp. standard operation (max.):

Water temp. thermal disinfection:

Flow rate DN15:

Flow rate during thermal

disinfection DN15:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Electronic protection type:

Dimensions (HxWxD):

6 V/DC

12 V/DC

30 V/DC

1,5-5,0 bar

70 °C

Short-term for therm. disinfection 80 °C

0,15 l/s (flow rate regulator)

0,05 l/s (flow rate regulator)

3-180 s

30 s

12, 24 or 72 h, can be deactivated via

setting on piezo switch, other hygienic

flush intervals can be set via Service APP

12 h after last water flow activation, 30 s

water flow time

IP68

1400x220x80 mm

6 V/DC Lithium battery

waterproof encased

Required accessories:

Shower head, hand shower set,

central mains power supply

or CNX central operation unit

Optional accessories:

Connection set

Cover extension

Manual TD plug for thermal disinfection

(see chapter accessories)

Note:

For the water path CNX with thermal disinfection,

the temperature sensor is already included in the

scope of delivery.

Power supply

Article number

for version

handheld shower

CONE0232211100

Article number

for version

shower head

•

•

CONE0132211100

•

•

•

CONE0232211140

CONE0132211140

•

CONE0231211100

CONE0231211140

CONE0131211100

•

•

CONE0131211140

•

•

CONE0232211200

CONE0132211200

•

•

•

CONE0232211210

CONE0132211210

12 V/DC series wiring to con-

nect to central mains power

supply

(see chapter

accessories)

•

•

•

CONE0232211230

CONE0132211230

•

•

•

CONE0232211240

CONE0132211240

•

CONE0231211200

CONE0131211200

•

•

CONE0231211210

CONE0131211210

•

•

CONE0231211230

CONE0131211230

•

•

CONE0231211240

CONE0131211240

30 V/DC

bus cabling to CNX

central operating unit

(see chapter

accessories)

•

•

•

CONE0232211336

CONE0132211336

•

•

•

•

CONE0232211360

CONE0132211360

•

•

CONE0231211336

CONE0131211336

•

•

•

CONE0231211360

CONE0131211360

CONHEAD jet shower head GOLF

CONO010010

See chapter

shower heads

CONHEAD rain shower head RAIN2

CONO020010

CONHEAD rain shower head SHORTY

CONHEAD jet shower head VESUV

CONO030010

CONO060010

CONHEAD jet shower head CITY

CONO050010

CONHEAD hand shower set

CONO040010
