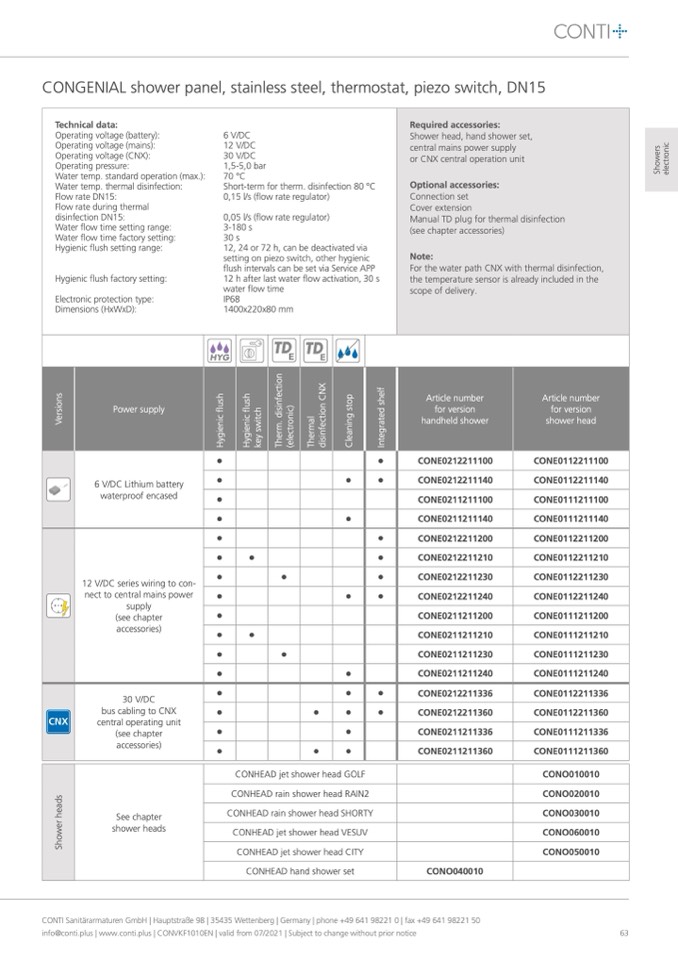

CONGENIAL shower panel, stainless steel, thermostat, piezo switch, DN15

Technical data:

Operating voltage (battery):

Operating voltage (mains):

Operating voltage (CNX):

Operating pressure:

Water temp. standard operation (max.):

Water temp. thermal disinfection:

Flow rate DN15:

Flow rate during thermal

disinfection DN15:

Water flow time setting range:

Water flow time factory setting:

Hygienic flush setting range:

Hygienic flush factory setting:

Electronic protection type:

Dimensions (HxWxD):

6 V/DC

12 V/DC

30 V/DC

1,5-5,0 bar

70 °C

Short-term for therm. disinfection 80 °C

0,15 l/s (flow rate regulator)

0,05 l/s (flow rate regulator)

3-180 s

30 s

12, 24 or 72 h, can be deactivated via

setting on piezo switch, other hygienic

flush intervals can be set via Service APP

12 h after last water flow activation, 30 s

water flow time

IP68

1400x220x80 mm

Power supply

6 V/DC Lithium battery

waterproof encased

Required accessories:

Shower head, hand shower set,

central mains power supply

or CNX central operation unit

Optional accessories:

Connection set

Cover extension

Manual TD plug for thermal disinfection

(see chapter accessories)

Note:

For the water path CNX with thermal disinfection,

the temperature sensor is already included in the

scope of delivery.

Article number

for version

handheld shower

CONE0212211100

Article number

for version

shower head

•

•

CONE0112211100

•

•

•

CONE0212211140

CONE0112211140

•

CONE0211211100

CONE0211211140

CONE0111211100

•

•

CONE0111211140

•

•

CONE0212211200

CONE0112211200

•

•

•

CONE0212211210

CONE0112211210

12 V/DC series wiring to con-

nect to central mains power

supply

(see chapter

accessories)

•

•

•

CONE0212211230

CONE0112211230

•

•

•

CONE0212211240

CONE0112211240

•

CONE0211211200

CONE0111211200

•

•

CONE0211211210

CONE0111211210

•

•

CONE0211211230

CONE0111211230

•

•

CONE0211211240

CONE0111211240

30 V/DC

bus cabling to CNX

central operating unit

(see chapter

accessories)

•

•

•

CONE0212211336

CONE0112211336

•

•

•

•

CONE0212211360

CONE0112211360

•

•

CONHEAD rain shower head RAIN2

•

•

•

CONE0211211336

CONE0211211360

CONE0111211336

CONE0111211360

CONHEAD jet shower head GOLF

CONO010010

CONO020010

See chapter

shower heads

CONHEAD rain shower head SHORTY

CONO030010

CONHEAD jet shower head VESUV

CONO060010

CONHEAD jet shower head CITY

CONO050010

CONHEAD hand shower set

CONO040010

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

63
