Showers - Descriptions

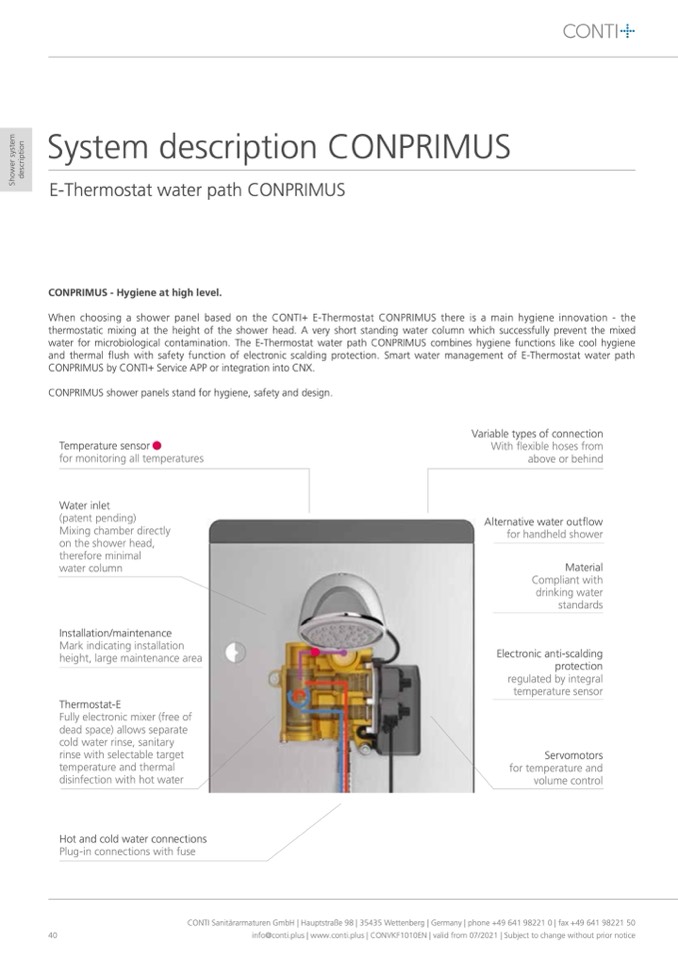

System description CONPRIMUS

E-Thermostat water path CONPRIMUS

CONPRIMUS - Hygiene at high level.

When choosing a shower panel based on the CONTI+ E-Thermostat CONPRIMUS there is a main hygiene innovation - the

thermostatic mixing at the height of the shower head. A very short standing water column which successfully prevent the mixed

water for microbiological contamination. The E-Thermostat water path CONPRIMUS combines hygiene functions like cool hygiene

and thermal flush with safety function of electronic scalding protection. Smart water management of E-Thermostat water path

CONPRIMUS by CONTI+ Service APP or integration into CNX.

S

h

o

w

e

r

s

y

s

t

e

m

d

e

s

c

r

i

p

t

i

o

n

CONPRIMUS shower panels stand for hygiene, safety and design.

Temperature sensor

for monitoring all temperatures

Water inlet

(patent pending)

Mixing chamber directly

on the shower head,

therefore minimal

water column

Installation/maintenance

Mark indicating installation

height, large maintenance area

Thermostat-E

Fully electronic mixer (free of

dead space) allows separate

cold water rinse, sanitary

rinse with selectable target

temperature and thermal

disinfection with hot water

Hot and cold water connections

Plug-in connections with fuse

Variable types of connection

With flexible hoses from

above or behind

Alternative water outflow

for handheld shower

Material

Compliant with

drinking water

standards

Electronic anti-scalding

protection

regulated by integral

temperature sensor

Servomotors

for temperature and

volume control

40
