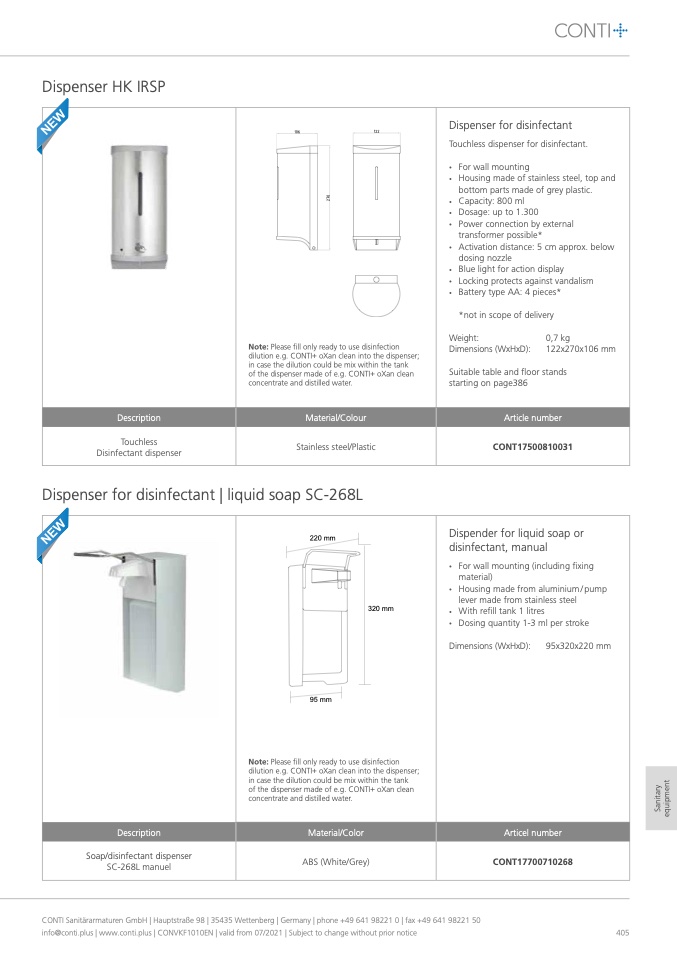

Dispenser HK IRSP

Note: Please fill only ready to use disinfection

dilution e.g. CONTI+ oXan clean into the dispenser;

in case the dilution could be mix within the tank

of the dispenser made of e.g. CONTI+ oXan clean

concentrate and distilled water.

Dispenser for disinfectant

Touchless dispenser for disinfectant.

•

For wall mounting

•

Housing made of stainless steel, top and

bottom parts made of grey plastic.

•

Capacity: 800 ml

•

Dosage: up to 1.300

•

Power connection by external

transformer possible*

•

Activation distance: 5 cm approx. below

dosing nozzle

•

Blue light for action display

•

Locking protects against vandalism

•

Battery type AA: 4 pieces*

*not in scope of delivery

Weight:

0,7 kg

Dimensions (WxHxD):

122x270x106 mm

Suitable table and floor stands

starting on page386

Description

Material/Colour

Article number

Touchless

Disinfectant dispenser

Stainless steel/Plastic

CONT17500810031

Dispenser for disinfectant | liquid soap SC-268L

220 mm

320 mm

95 mm

Note: Please fill only ready to use disinfection

dilution e.g. CONTI+ oXan clean into the dispenser;

in case the dilution could be mix within the tank

of the dispenser made of e.g. CONTI+ oXan clean

concentrate and distilled water.

Dispender for liquid soap or

disinfectant, manual

•

For wall mounting (including fixing

material)

•

Housing made from aluminium/pump

lever made from stainless steel

•

With refill tank 1 litres

•

Dosing quantity 1-3 ml per stroke

Dimensions (WxHxD):

95x320x220 mm

Description

Material/Color

Articel number

Soap/disinfectant dispenser

SC-268L manuel

ABS (White/Grey)

CONT17700710268

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

405
