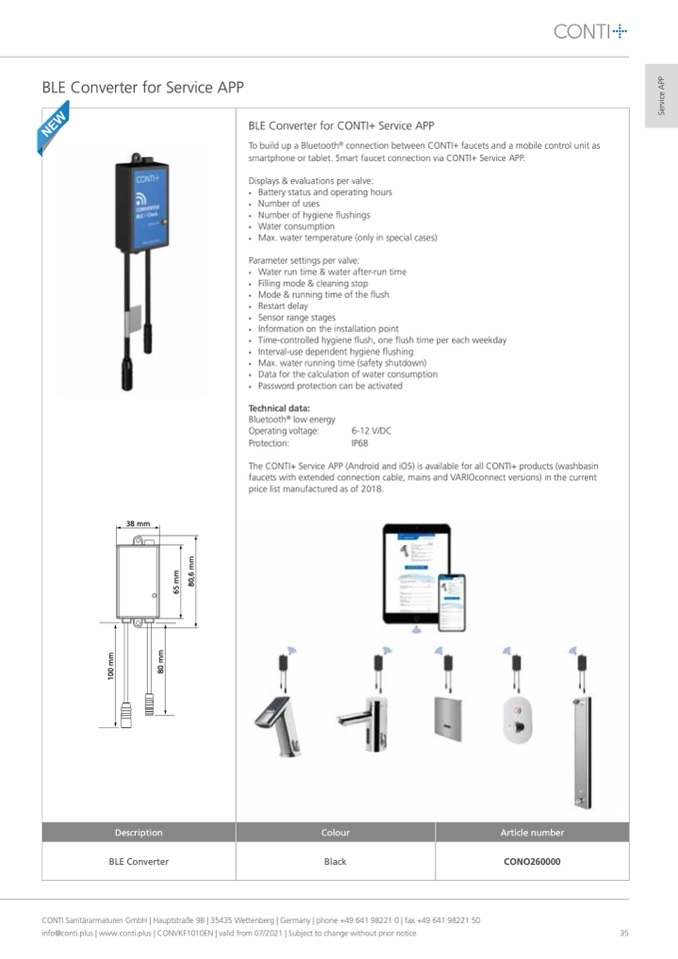

BLE Converter for Service APP
38 mm
Description
BLE Converter
Colour
Black
BLE Converter for CONTI+ Service APP
To build up a Bluetooth
®
connection between CONTI+ faucets and a mobile control unit as
smartphone or tablet. Smart faucet connection via CONTI+ Service APP.
Displays & evaluations per valve:
•
Battery status and operating hours
•
Number of uses
•
Number of hygiene flushings
•
Water consumption
•
Max. water temperature (only in special cases)
Parameter settings per valve:
•
Water run time & water after-run time
•
Filling mode & cleaning stop
•
Mode & running time of the flush
•
Restart delay
•
Sensor range stages
•
Information on the installation point
•
Time-controlled hygiene flush, one flush time per each weekday
•
Interval-use dependent hygiene flushing
•
Max. water running time (safety shutdown)
•
Data for the calculation of water consumption
•
Password protection can be activated
Technical data:
Bluetooth
®
low energy
Operating voltage:
6-12 V/DC
Protection:
IP68
The CONTI+ Service APP (Android and iOS) is available for all CONTI+ products (washbasin
faucets with extended connection cable, mains and VARIOconnect versions) in the current
price list manufactured as of 2018.
1
0
0
m
m
8
0
m
m
6
5
m
m
8
0
,
6
m
m
S
e
r
v
i
c
e
A
P
P
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
35
APP
Service
APP
Service
APP
Service
APP
Service
Article number
CONO260000
