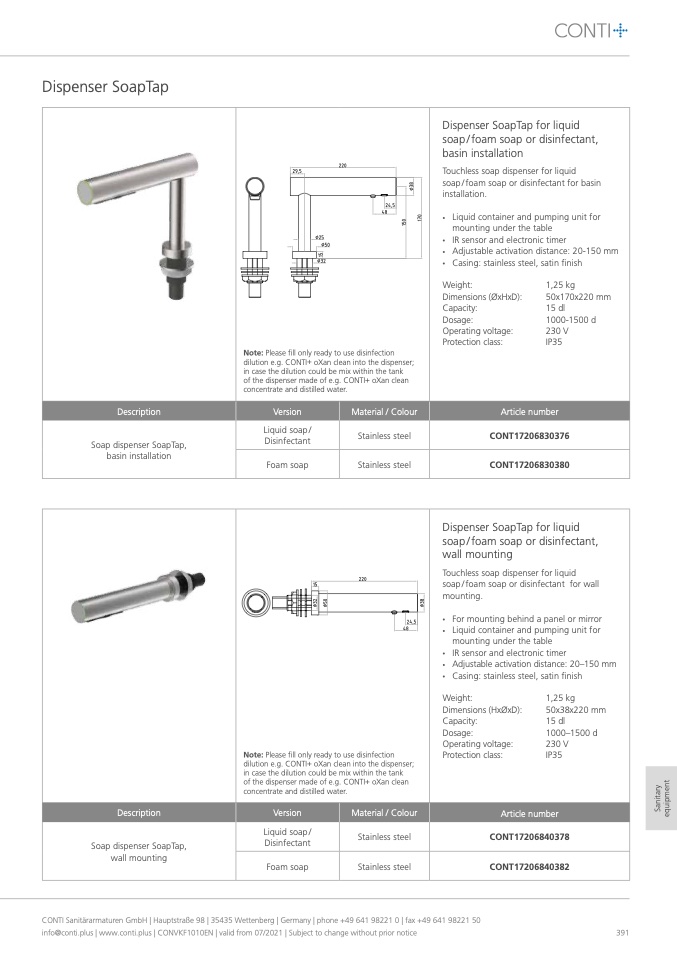

Dispenser SoapTap
Note: Please fill only ready to use disinfection
dilution e.g. CONTI+ oXan clean into the dispenser;
in case the dilution could be mix within the tank
of the dispenser made of e.g. CONTI+ oXan clean
concentrate and distilled water.
Dispenser SoapTap for liquid
soap/foam soap or disinfectant,
basin installation
Touchless soap dispenser for liquid
soap/foam soap or disinfectant for basin
installation.
•
Liquid container and pumping unit for
mounting under the table
•
IR sensor and electronic timer
•
Adjustable activation distance: 20-150 mm
•
Casing: stainless steel, satin finish
Weight:
Dimensions (ØxHxD):
Capacity:
Dosage:
Operating voltage:
Protection class:
1,25 kg
50x170x220 mm
15 dl
1000-1500 d
230 V
IP35
Description
Version
Material / Colour
Article number
Soap dispenser SoapTap,
basin installation
Liquid soap/
Disinfectant
Foam soap
Stainless steel
CONT17206830376
Stainless steel
CONT17206830380
Note: Please fill only ready to use disinfection
dilution e.g. CONTI+ oXan clean into the dispenser;
in case the dilution could be mix within the tank
of the dispenser made of e.g. CONTI+ oXan clean
concentrate and distilled water.
Dispenser SoapTap for liquid
soap/foam soap or disinfectant,
wall mounting
Touchless soap dispenser for liquid
soap/foam soap or disinfectant for wall
mounting.
•
For mounting behind a panel or mirror
•
Liquid container and pumping unit for
mounting under the table
•
IR sensor and electronic timer
•
Adjustable activation distance: 20–150 mm
•
Casing: stainless steel, satin finish
Weight:
Dimensions (HxØxD):
Capacity:
Dosage:
Operating voltage:
Protection class:
1,25 kg
50x38x220 mm
15 dl
1000–1500 d
230 V
IP35
Description
Version
Material / Colour
Article number
Soap dispenser SoapTap,
wall mounting
Liquid soap/
Disinfectant
Stainless steel
CONT17206840378
Foam soap
Stainless steel
CONT17206840382
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
