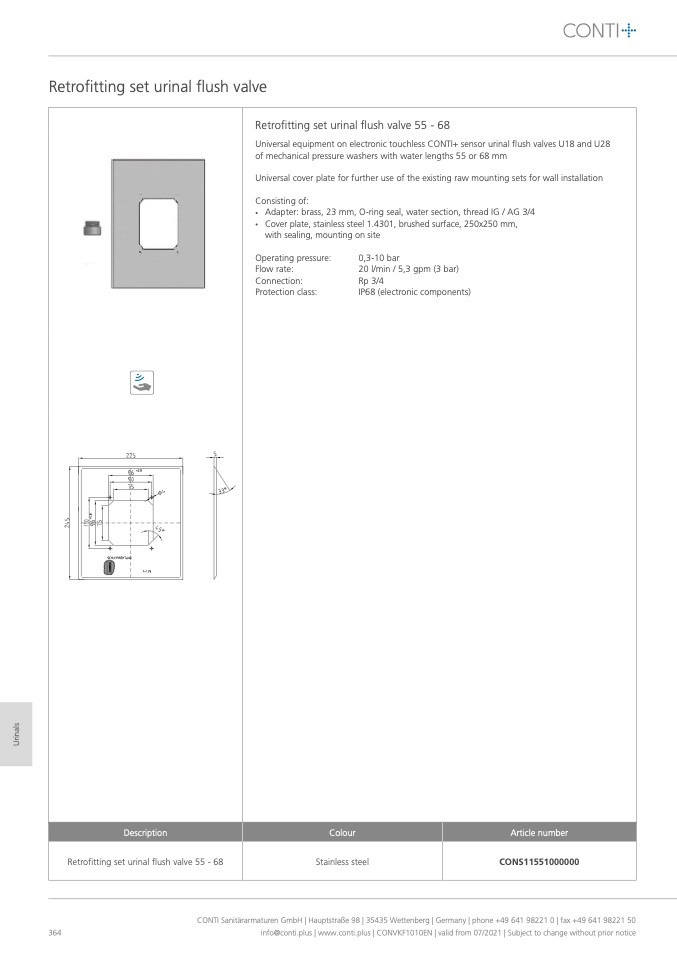

Retrofitting set urinal flush valve 55 - 68

Universal equipment on electronic touchless CONTI+ sensor urinal flush valves U18 and U28

of mechanical pressure washers with water lengths 55 or 68 mm

Universal cover plate for further use of the existing raw mounting sets for wall installation

Consisting of:

•

Adapter: brass, 23 mm, O-ring seal, water section, thread IG / AG 3/4

•

Cover plate, stainless steel 1.4301, brushed surface, 250x250 mm,

with sealing, mounting on site

Operating pressure:

Flow rate:

Connection:

Protection class:

0,3-10 bar

20 l/min / 5,3 gpm (3 bar)

Rp 3/4

IP68 (electronic components)

Description

Colour

Article number

Retrofitting set urinal flush valve 55 - 68

Stainless steel

CONS11551000000

Retrofitting set urinal flush valve
