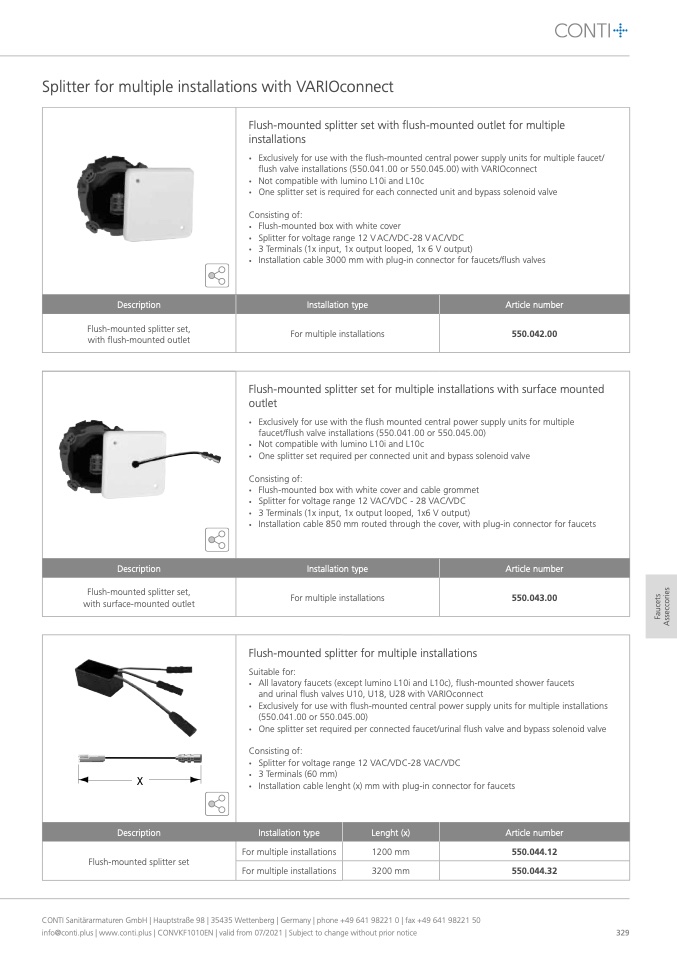

Splitter for multiple installations with VARIOconnect

Flush-mounted splitter set with flush-mounted outlet for multiple

installations

•

Exclusively for use with the flush-mounted central power supply units for multiple faucet/

flush valve installations (550.041.00 or 550.045.00) with VARIOconnect

•

Not compatible with lumino L10i and L10c

•

One splitter set is required for each connected unit and bypass solenoid valve

Consisting of:

•

Flush-mounted box with white cover

•

Splitter for voltage range 12 VAC/VDC-28 VAC/VDC

•

3 Terminals (1x input, 1x output looped, 1x 6 V output)

•

Installation cable 3000 mm with plug-in connector for faucets/flush valves

Description

Installation type

Article number

Flush-mounted splitter set,

with flush-mounted outlet

For multiple installations

550.042.00

Flush-mounted splitter set for multiple installations with surface mounted

outlet

•

Exclusively for use with the flush mounted central power supply units for multiple

faucet/flush valve installations (550.041.00 or 550.045.00)

•

Not compatible with lumino L10i and L10c

•

One splitter set required per connected unit and bypass solenoid valve

Consisting of:

•

Flush-mounted box with white cover and cable grommet

•

Splitter for voltage range 12 VAC/VDC - 28 VAC/VDC

•

3 Terminals (1x input, 1x output looped, 1x6 V output)

•

Installation cable 850 mm routed through the cover, with plug-in connector for faucets

Description

Installation type

Article number

Flush-mounted splitter set,

with surface-mounted outlet

For multiple installations

550.043.00

X

Flush-mounted splitter for multiple installations

Suitable for:

•

All lavatory faucets (except lumino L10i and L10c), flush-mounted shower faucets

and urinal flush valves U10, U18, U28 with VARIOconnect

•

Exclusively for use with flush-mounted central power supply units for multiple installations

(550.041.00 or 550.045.00)

•

One splitter set required per connected faucet/urinal flush valve and bypass solenoid valve

Consisting of:

•

Splitter for voltage range 12 VAC/VDC-28 VAC/VDC

•

3 Terminals (60 mm)

•

Installation cable lenght (x) mm with plug-in connector for faucets

Description

Installation type

Lenght (x)

Article number

Flush-mounted splitter set

For multiple installations

1200 mm

550.044.12

For multiple installations

3200 mm

550.044.32
