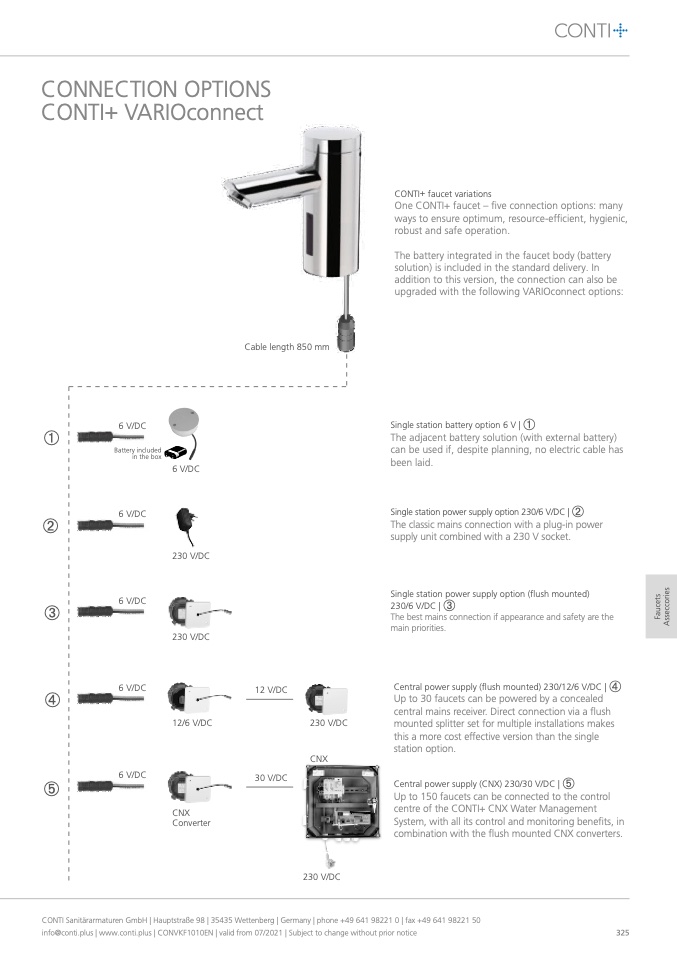

CONNECTION OPTIONS

CONTI+ VARIOconnect

Cable length 850 mm

CONTI+ faucet variations

One CONTI+ faucet – five connection options: many

ways to ensure optimum, resource-efficient, hygienic,

robust and safe operation.

The battery integrated in the faucet body (battery

solution) is included in the standard delivery. In

addition to this version, the connection can also be

upgraded with the following VARIOconnect options:

Single station battery option 6 V |



The adjacent battery solution (with external battery)

can be used if, despite planning, no electric cable has

been laid.

Single station power supply option 230/6 V/DC |



The classic mains connection with a plug-in power

supply unit combined with a 230 V socket.

Single station power supply option (flush mounted)

230/6 V/DC |



The best mains connection if appearance and safety are the

main priorities.

Central power supply (flush mounted) 230/12/6 V/DC |



Up to 30 faucets can be powered by a concealed

central mains receiver. Direct connection via a flush

mounted splitter set for multiple installations makes

this a more cost effective version than the single

station option.

Central power supply (CNX) 230/30 V/DC |



Up to 150 faucets can be connected to the control

centre of the CONTI+ CNX Water Management

System, with all its control and monitoring benefits, in

combination with the flush mounted CNX converters.











6 V/DC

Battery included

in the box

6 V/DC

6 V/DC

6 V/DC

230 V/DC

230 V/DC

6 V/DC

12/6 V/DC

6 V/DC

CNX

Converter

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

325

12 V/DC

30 V/DC

230 V/DC

CNX

230 V/DC
