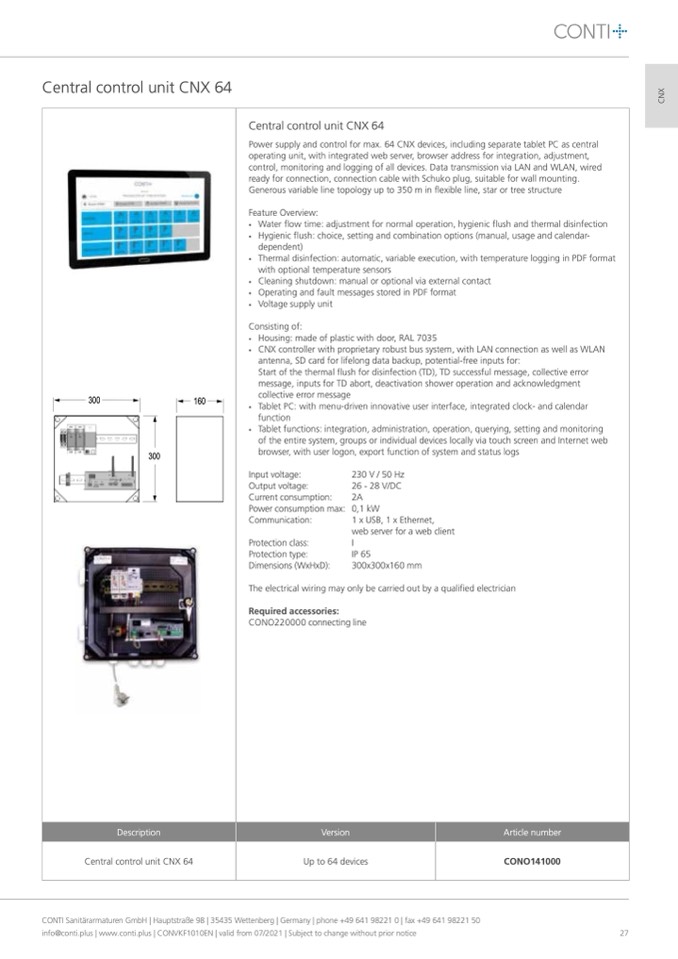

Central control unit CNX 64

300

160

300

Central control unit CNX 64

Power supply and control for max. 64 CNX devices, including separate tablet PC as central

operating unit, with integrated web server, browser address for integration, adjustment,

control, monitoring and logging of all devices. Data transmission via LAN and WLAN, wired

ready for connection, connection cable with Schuko plug, suitable for wall mounting.

Generous variable line topology up to 350 m in flexible line, star or tree structure

Feature Overview:

•

Water flow time: adjustment for normal operation, hygienic flush and thermal disinfection

•

Hygienic flush: choice, setting and combination options (manual, usage and calendar-

dependent)

•

Thermal disinfection: automatic, variable execution, with temperature logging in PDF format

with optional temperature sensors

•

Cleaning shutdown: manual or optional via external contact

•

Operating and fault messages stored in PDF format

•

Voltage supply unit

Consisting of:

•

Housing: made of plastic with door, RAL 7035

•

CNX controller with proprietary robust bus system, with LAN connection as well as WLAN

antenna, SD card for lifelong data backup, potential-free inputs for:

Start of the thermal flush for disinfection (TD), TD successful message, collective error

message, inputs for TD abort, deactivation shower operation and acknowledgment

collective error message

•

Tablet PC: with menu-driven innovative user interface, integrated clock- and calendar

function

•

Tablet functions: integration, administration, operation, querying, setting and monitoring

of the entire system, groups or individual devices locally via touch screen and Internet web

browser, with user logon, export function of system and status logs

Input voltage:

Output voltage:

Current consumption:

Power consumption max:

Communication:

Protection class:

Protection type:

Dimensions (WxHxD):

230 V / 50 Hz

26 - 28 V/DC

2A

0,1 kW

1 x USB, 1 x Ethernet,

web server for a web client

I

IP 65

300x300x160 mm

The electrical wiring may only be carried out by a qualified electrician

Required accessories:

CONO220000 connecting line

Description

Version

Article number

Central control unit CNX 64

Up to 64 devices

CONO141000
