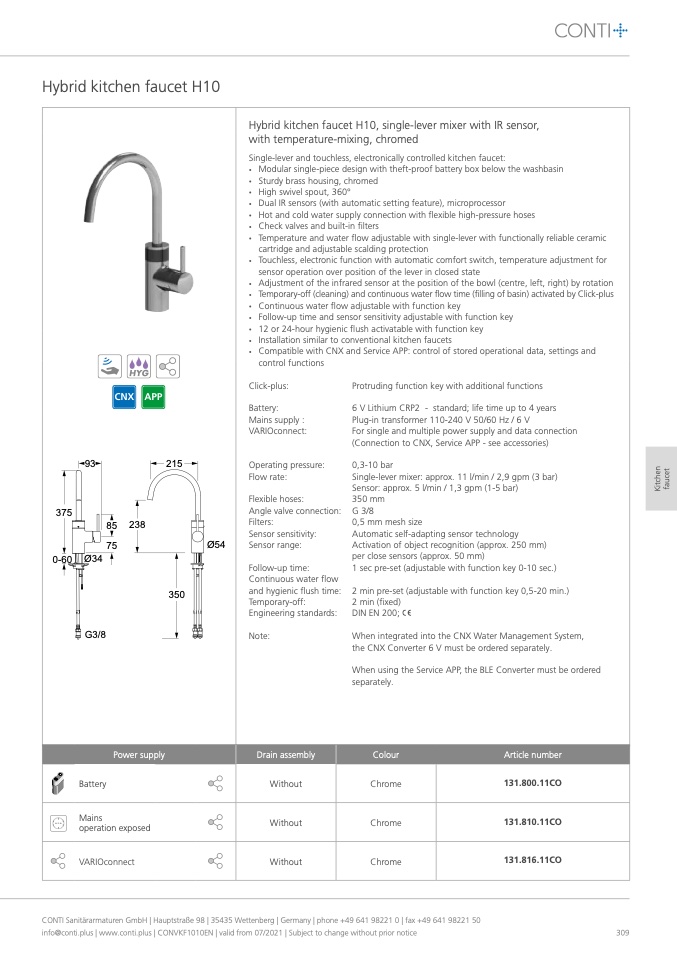

Hybrid kitchen faucet H10

93

0-60

Ø34

G3/8

215

350

control functions

Click-plus:

Battery:

Mains supply :

VARIOconnect:

Operating pressure:

Flow rate:

Flexible hoses:

Angle valve connection:

Filters:

Sensor sensitivity:

Sensor range:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Note:

Drain assembly

Without

Without

Without

Protruding function key with additional functions

6 V Lithium CRP2 - standard; life time up to 4 years

Plug-in transformer 110-240 V 50/60 Hz / 6 V

For single and multiple power supply and data connection

(Connection to CNX, Service APP - see accessories)

0,3-10 bar

Single-lever mixer: approx. 11 l/min / 2,9 gpm (3 bar)

Sensor: approx. 5 l/min / 1,3 gpm (1-5 bar)

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

Activation of object recognition (approx. 250 mm)

per close sensors (approx. 50 mm)

1 sec pre-set (adjustable with function key 0-10 sec.)

2 min pre-set (adjustable with function key 0,5-20 min.)

2 min (fixed)

DIN EN 200;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

375

Battery

85

238

75

Ø54

Power supply

Colour

Chrome

Chrome

Chrome

Article number

131.800.11CO

131.810.11CO

131.816.11CO

Mains

operation exposed

VARIOconnect

Hybrid kitchen faucet H10, single-lever mixer with IR sensor,

with temperature-mixing, chromed

Single-lever and touchless, electronically controlled kitchen faucet:

•

Modular single-piece design with theft-proof battery box below the washbasin

•

Sturdy brass housing, chromed

•

High swivel spout, 360°

•

Dual IR sensors (with automatic setting feature), microprocessor

•

Hot and cold water supply connection with flexible high-pressure hoses

•

Check valves and built-in filters

•

Temperature and water flow adjustable with single-lever with functionally reliable ceramic

cartridge and adjustable scalding protection

•

Touchless, electronic function with automatic comfort switch, temperature adjustment for

sensor operation over position of the lever in closed state

•

Adjustment of the infrared sensor at the position of the bowl (centre, left, right) by rotation

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12 or 24-hour hygienic flush activatable with function key

•

Installation similar to conventional kitchen faucets

•

Compatible with CNX and Service APP: control of stored operational data, settings and

K

i

t

c

h

e

n

f

a

u

c

e

t

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
