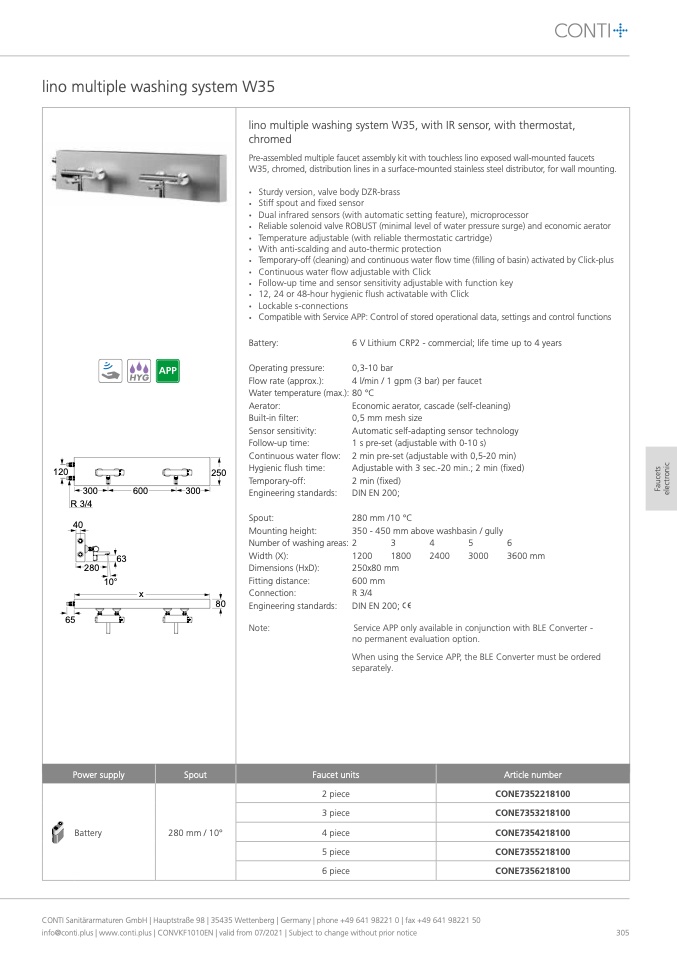

lino multiple washing system W35

120

280

300

250

80

Battery:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow:

Hygienic flush time:

Temporary-off:

Engineering standards:

Spout:

Mounting height:

Number of washing areas:

Width (X):

Dimensions (HxD):

Fitting distance:

Connection:

Engineering standards:

6 V Lithium CRP2 - commercial; life time up to 4 years

0,3-10 bar

4 l/min / 1 gpm (3 bar) per faucet

80 °C

Economic aerator, cascade (self-cleaning)

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with 0-10 s)

2 min pre-set (adjustable with 0,5-20 min)

Adjustable with 3 sec.-20 min.; 2 min (fixed)

2 min (fixed)

DIN EN 200;

300

R 3/4

40

65

63

10°

600

x

280 mm /10 °C

350 - 450 mm above washbasin / gully

2

3

4

5

1200

1800

2400

3000

250x80 mm

600 mm

R 3/4

DIN EN 200;

6

3600 mm

Power supply

Battery

Spout

Faucet units

2 piece

3 piece

4 piece

5 piece

6 piece

Article number

CONE7352218100

CONE7353218100

CONE7354218100

CONE7355218100

CONE7356218100

280 mm / 10°

lino multiple washing system W35, with IR sensor, with thermostat,

chromed

Pre-assembled multiple faucet assembly kit with touchless lino exposed wall-mounted faucets

W35, chromed, distribution lines in a surface-mounted stainless steel distributor, for wall mounting.

•

Sturdy version, valve body DZR-brass

•

Stiff spout and fixed sensor

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Temperature adjustable (with reliable thermostatic cartridge)

•

With anti-scalding and auto-thermic protection

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow adjustable with Click

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with Click

•

Lockable s-connections

•

Compatible with Service APP: Control of stored operational data, settings and control functions

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

Note:

Service APP only available in conjunction with BLE Converter -

no permanent evaluation option.

When using the Service APP, the BLE Converter must be ordered

separately.
