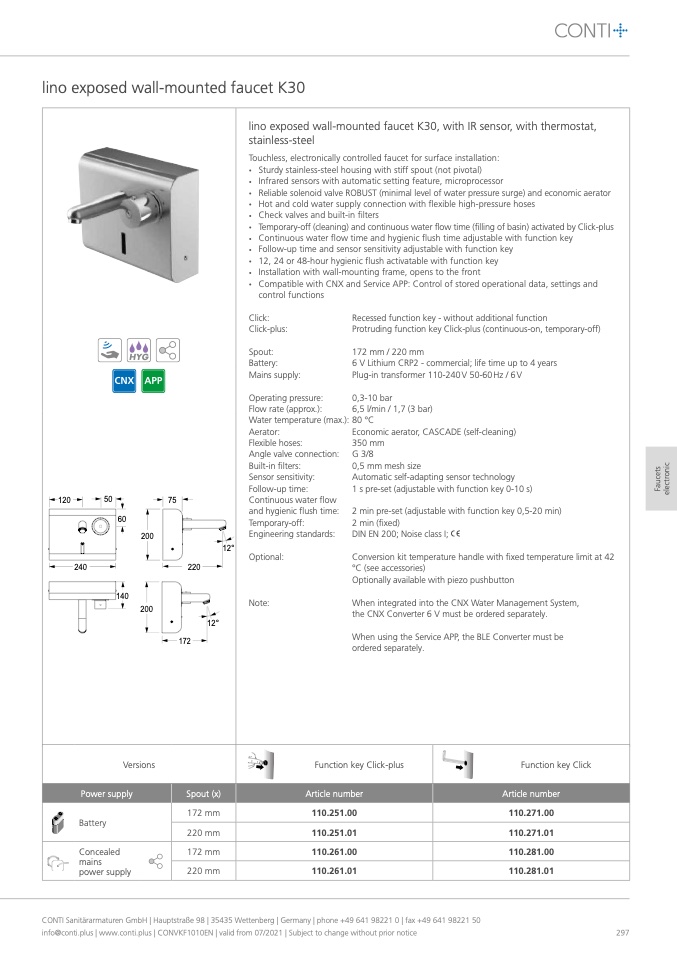

lino exposed wall-mounted faucet K30
lino exposed wall-mounted faucet K30, with IR sensor, with thermostat,
stainless-steel
Touchless, electronically controlled faucet for surface installation:
•
Sturdy stainless-steel housing with stiff spout (not pivotal)
•
Infrared sensors with automatic setting feature, microprocessor
•
Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator
•
Hot and cold water supply connection with flexible high-pressure hoses
•
Check valves and built-in filters
•
Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus
•
Continuous water flow time and hygienic flush time adjustable with function key
•
Follow-up time and sensor sensitivity adjustable with function key
•
12, 24 or 48-hour hygienic flush activatable with function key
•
Installation with wall-mounting frame, opens to the front
•
Compatible with CNX and Service APP: Control of stored operational data, settings and
control functions
Click:
Click-plus:
Spout:
Battery:
Mains supply:
Operating pressure:
Flow rate (approx.):
Water temperature (max.):
Aerator:
Flexible hoses:
Angle valve connection:
Built-in filters:
Sensor sensitivity:
Follow-up time:
Continuous water flow
and hygienic flush time:
Temporary-off:
Engineering standards:
Optional:
Note:
Recessed function key - without additional function
Protruding function key Click-plus (continuous-on, temporary-off)
172 mm / 220 mm
6 V Lithium CRP2 - commercial; life time up to 4 years
Plug-in transformer 110-240V 50-60Hz / 6V
0,3-10 bar
6,5 l/min / 1,7 (3 bar)
80 °C
Economic aerator, CASCADE (self-cleaning)
350 mm
G 3/8
0,5 mm mesh size
Automatic self-adapting sensor technology
1 s pre-set (adjustable with function key 0-10 s)
2 min pre-set (adjustable with function key 0,5-20 min)
2 min (fixed)
DIN EN 200; Noise class I;
Conversion kit temperature handle with fixed temperature limit at 42
°C (see accessories)
Optionally available with piezo pushbutton
When integrated into the CNX Water Management System,
the CNX Converter 6 V must be ordered separately.
When using the Service APP, the BLE Converter must be
ordered separately.
120
50
75
6
0
200
140
200
12°
240
220
12°
172
Versions
Function key Click-plus
Function key Click
Power supply
Spout (x)
Article number
Article number
172 mm
110.251.00
110.271.00
Battery
220 mm
110.251.01
110.271.01
Concealed
mains
power supply
172 mm
110.261.00
110.281.00
220 mm
110.261.01
110.281.01
CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50
info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
