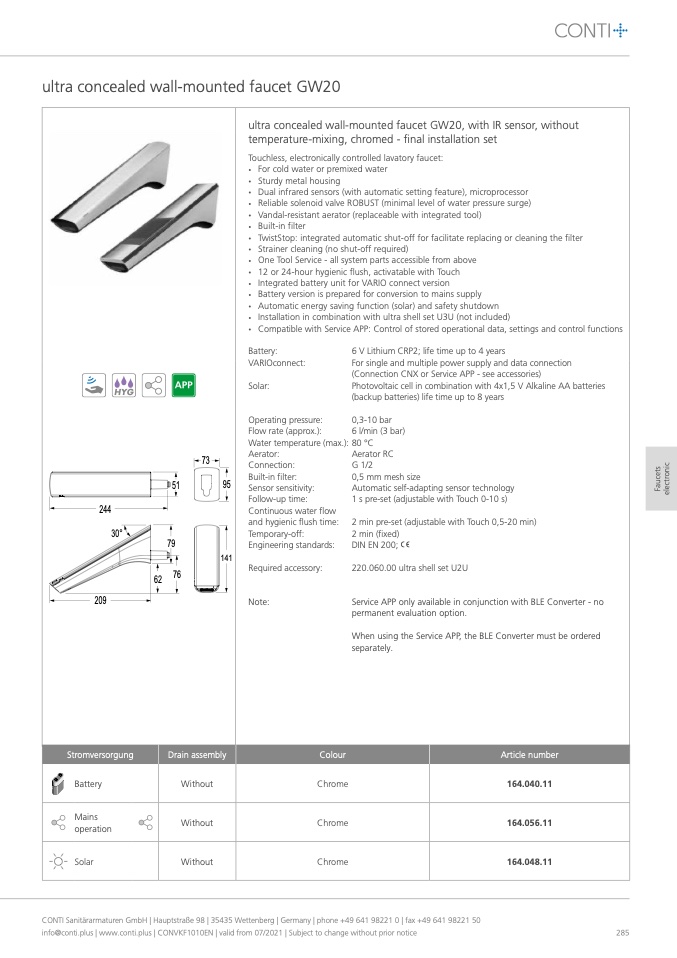

ultra concealed wall-mounted faucet GW20

244

30°

209

Note:

Stromversorgung

Battery

Mains

operation

Solar

Drain assembly

Without

Without

Without

Colour

Chrome

Chrome

Chrome

Article number

164.040.11

164.056.11

164.048.11

51

79

62

76

95

73

141

Battery:

VARIOconnect:

Solar:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Required accessory:

6 V Lithium CRP2; life time up to 4 years

For single and multiple power supply and data connection

(Connection CNX or Service APP - see accessories)

Photovoltaic cell in combination with 4x1,5 V Alkaline AA batteries

(backup batteries) life time up to 8 years

0,3-10 bar

6 l/min (3 bar)

80 °C

Aerator RC

G 1/2

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with Touch 0-10 s)

2 min pre-set (adjustable with Touch 0,5-20 min)

2 min (fixed)

DIN EN 200;

220.060.00 ultra shell set U2U

Service APP only available in conjunction with BLE Converter - no

permanent evaluation option.

When using the Service APP, the BLE Converter must be ordered

separately.

ultra concealed wall-mounted faucet GW20, with IR sensor, without

temperature-mixing, chromed - final installation set

Touchless, electronically controlled lavatory faucet:

•

For cold water or premixed water

•

Sturdy metal housing

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge)

•

Vandal-resistant aerator (replaceable with integrated tool)

•

Built-in filter

•

TwistStop: integrated automatic shut-off for facilitate replacing or cleaning the filter

•

Strainer cleaning (no shut-off required)

•

One Tool Service - all system parts accessible from above

•

12 or 24-hour hygienic flush, activatable with Touch

•

Integrated battery unit for VARIO connect version

•

Battery version is prepared for conversion to mains supply

•

Automatic energy saving function (solar) and safety shutdown

•

Installation in combination with ultra shell set U3U (not included)

•

Compatible with Service APP: Control of stored operational data, settings and control functions

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

285
