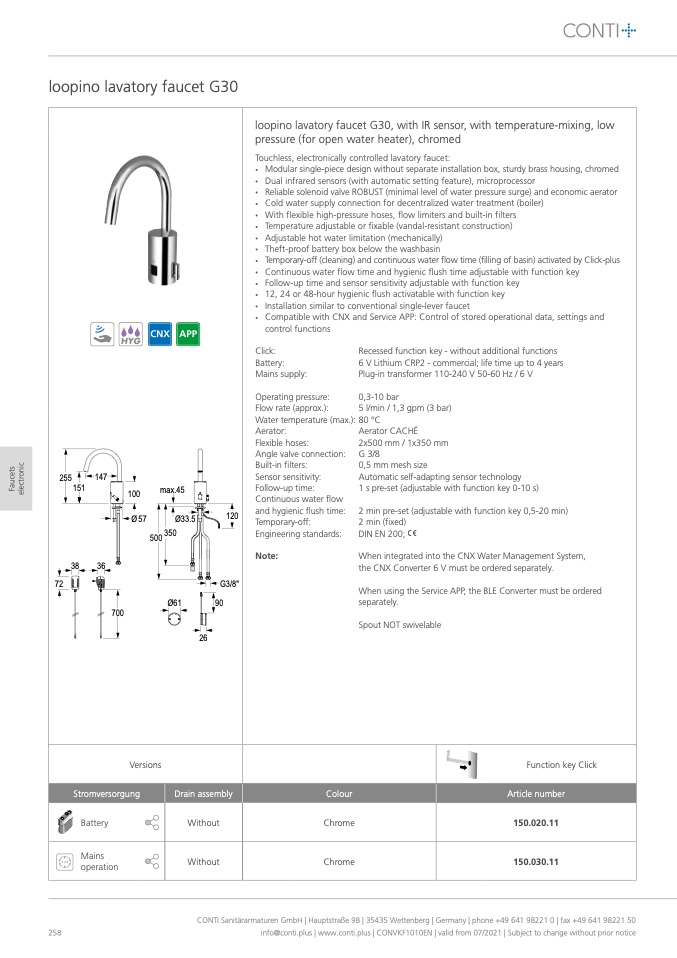

loopino lavatory faucet G30

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

72

258

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

255

151

38

147

36

100

Ø 57

max.45

Ø33.5

500

350

Ø61

120

G3/8"

90

control functions

Click:

Battery:

Mains supply:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Note:

Recessed function key - without additional functions

6 V Lithium CRP2 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

0,3-10 bar

5 l/min / 1,3 gpm (3 bar)

80 °C

Aerator CACHÉ

2x500 mm / 1x350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

Stromversorgung

700

Versions

Function key Click

Article number

150.020.11

150.030.11

26

Colour

Battery

Without

Chrome

Mains

operation

Without

Chrome

Drain assembly

loopino lavatory faucet G30, with IR sensor, with temperature-mixing, low

pressure (for open water heater), chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy brass housing, chromed

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection for decentralized water treatment (boiler)

•

With flexible high-pressure hoses, flow limiters and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

Theft-proof battery box below the washbasin

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: Control of stored operational data, settings and

Spout NOT swivelable
