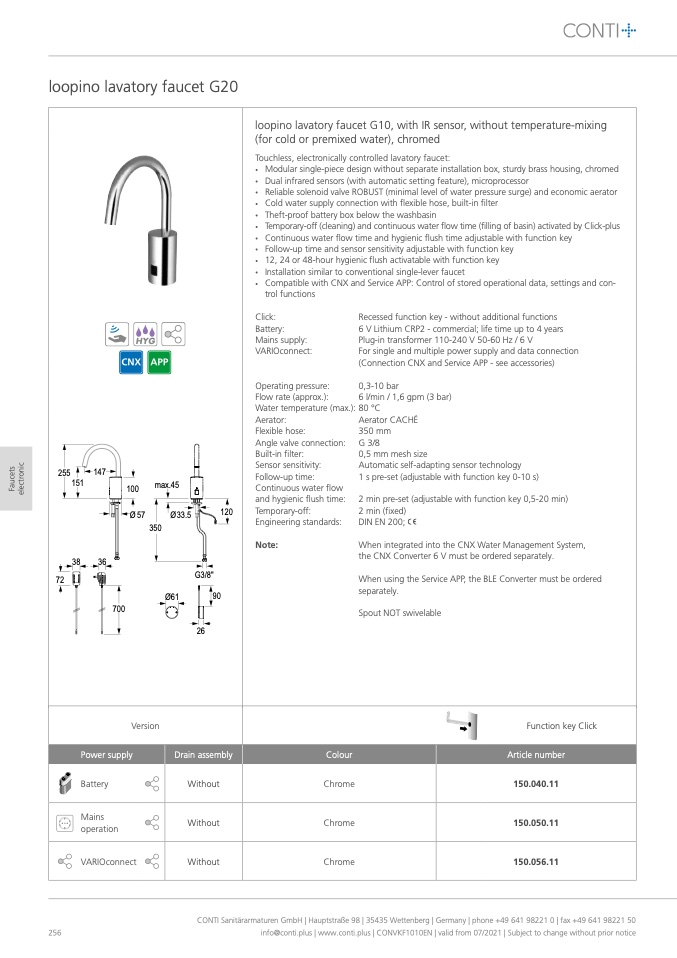

loopino lavatory faucet G20

256

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

255

147

151

100

max.45

Ø57

Ø33.5

350

trol functions

Click:

Battery:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hose:

Angle valve connection:

Built-in filter:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Recessed function key - without additional functions

6 V Lithium CRP2 - commercial; life time up to 4 years

Plug-in transformer 110-240 V 50-60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

6 l/min / 1,6 gpm (3 bar)

80 °C

Aerator CACHÉ

350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

72

38

36

700

G3/8"

Power supply

Battery

Mains

operation

VARIOconnect

Drain assembly

Without

Without

Without

Colour

Chrome

Chrome

Chrome

Version

Function key Click

Article number

150.040.11

150.050.11

150.056.11

Ø61

90

26

120

loopino lavatory faucet G10, with IR sensor, without temperature-mixing

(for cold or premixed water), chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy brass housing, chromed

•

Dual infrared sensors (with automatic setting feature), microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection with flexible hose, built-in filter

•

Theft-proof battery box below the washbasin

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: Control of stored operational data, settings and con-

Note:

Spout NOT swivelable
