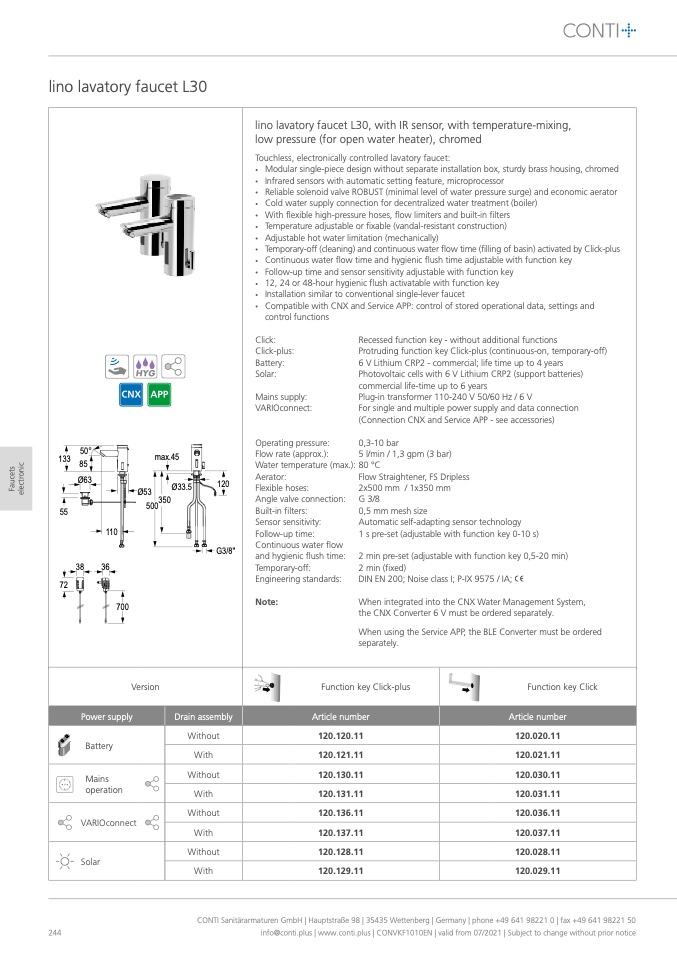

lino lavatory faucet L30

244

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

133

Ø63

55

72

500

350

50°

max.45

Ø33.5

control functions

Click:

Click-plus:

Battery:

Solar:

Mains supply:

VARIOconnect:

Operating pressure:

Flow rate (approx.):

Water temperature (max.):

Aerator:

Flexible hoses:

Angle valve connection:

Built-in filters:

Sensor sensitivity:

Follow-up time:

Continuous water flow

and hygienic flush time:

Temporary-off:

Engineering standards:

Recessed function key - without additional functions

Protruding function key Click-plus (continuous-on, temporary-off)

6 V Lithium CRP2 - commercial; life time up to 4 years

Photovoltaic cells with 6 V Lithium CRP2 (support batteries)

commercial life-time up to 6 years

Plug-in transformer 110-240 V 50/60 Hz / 6 V

For single and multiple power supply and data connection

(Connection CNX and Service APP - see accessories)

0,3-10 bar

5 l/min / 1,3 gpm (3 bar)

80 °C

Flow Straightener, FS Dripless

2x500 mm / 1x350 mm

G 3/8

0,5 mm mesh size

Automatic self-adapting sensor technology

1 s pre-set (adjustable with function key 0-10 s)

2 min pre-set (adjustable with function key 0,5-20 min)

2 min (fixed)

DIN EN 200; Noise class I; P-IX 9575 / IA;

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be ordered

separately.

85

110

38

36

Power supply

Battery

Mains

operation

VARIOconnect

Solar

Drain assembly

Without

With

Without

With

Without

With

Without

With

700

Note:

Ø53

120

G3/8"

Version

Function key Click-plus

Article number

120.120.11

120.121.11

120.130.11

120.131.11

120.136.11

120.137.11

120.128.11

120.129.11

Function key Click

Article number

120.020.11

120.021.11

120.030.11

120.031.11

120.036.11

120.037.11

120.028.11

120.029.11

lino lavatory faucet L30, with IR sensor, with temperature-mixing,

low pressure (for open water heater), chromed

Touchless, electronically controlled lavatory faucet:

•

Modular single-piece design without separate installation box, sturdy brass housing, chromed

•

Infrared sensors with automatic setting feature, microprocessor

•

Reliable solenoid valve ROBUST (minimal level of water pressure surge) and economic aerator

•

Cold water supply connection for decentralized water treatment (boiler)

•

With flexible high-pressure hoses, flow limiters and built-in filters

•

Temperature adjustable or fixable (vandal-resistant construction)

•

Adjustable hot water limitation (mechanically)

•

Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus

•

Continuous water flow time and hygienic flush time adjustable with function key

•

Follow-up time and sensor sensitivity adjustable with function key

•

12, 24 or 48-hour hygienic flush activatable with function key

•

Installation similar to conventional single-lever faucet

•

Compatible with CNX and Service APP: control of stored operational data, settings and
