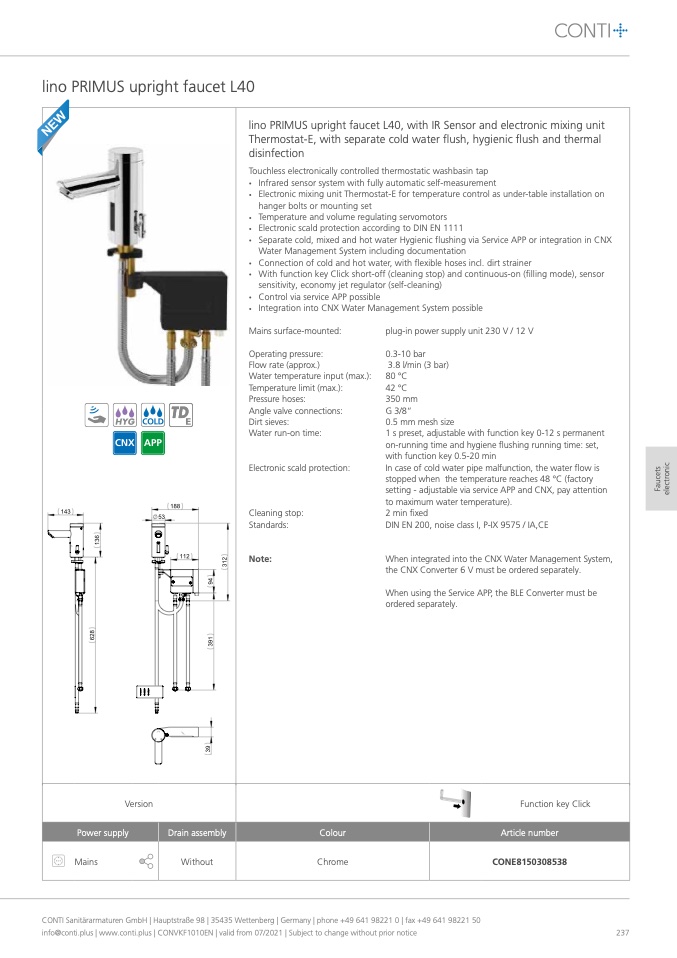

lino PRIMUS upright faucet L40

Version

Power supply

Mains

Drain assembly

Without

Colour

Chrome

Function key Click

Article number

CONE8150308538

lino PRIMUS upright faucet L40, with IR Sensor and electronic mixing unit

Thermostat-E, with separate cold water flush, hygienic flush and thermal

disinfection

Touchless electronically controlled thermostatic washbasin tap

•

Infrared sensor system with fully automatic self-measurement

•

Electronic mixing unit Thermostat-E for temperature control as under-table installation on

hanger bolts or mounting set

•

Temperature and volume regulating servomotors

•

Electronic scald protection according to DIN EN 1111

•

Separate cold, mixed and hot water Hygienic flushing via Service APP or integration in CNX

Water Management System including documentation

•

Connection of cold and hot water, with flexible hoses incl. dirt strainer

•

With function key Click short-off (cleaning stop) and continuous-on (filling mode), sensor

sensitivity, economy jet regulator (self-cleaning)

•

Control via service APP possible

•

Integration into CNX Water Management System possible

Mains surface-mounted:

Operating pressure:

Flow rate (approx.)

Water temperature input (max.):

Temperature limit (max.):

Pressure hoses:

Angle valve connections:

Dirt sieves:

Water run-on time:

Electronic scald protection:

plug-in power supply unit 230 V / 12 V

0.3-10 bar

3.8 l/min (3 bar)

80 °C

42 °C

350 mm

G 3/8“

0.5 mm mesh size

1 s preset, adjustable with function key 0-12 s permanent

on-running time and hygiene flushing running time: set,

with function key 0.5-20 min

In case of cold water pipe malfunction, the water flow is

stopped when the temperature reaches 48 °C (factory

setting - adjustable via service APP and CNX, pay attention

to maximum water temperature).

2 min fixed

DIN EN 200, noise class I, P-IX 9575 / IA,CE

When integrated into the CNX Water Management System,

the CNX Converter 6 V must be ordered separately.

When using the Service APP, the BLE Converter must be

ordered separately.

F

a

u

c

e

t

s

e

l

e

c

t

r

o

n

i

c

Cleaning stop:

Standards:

Note:
