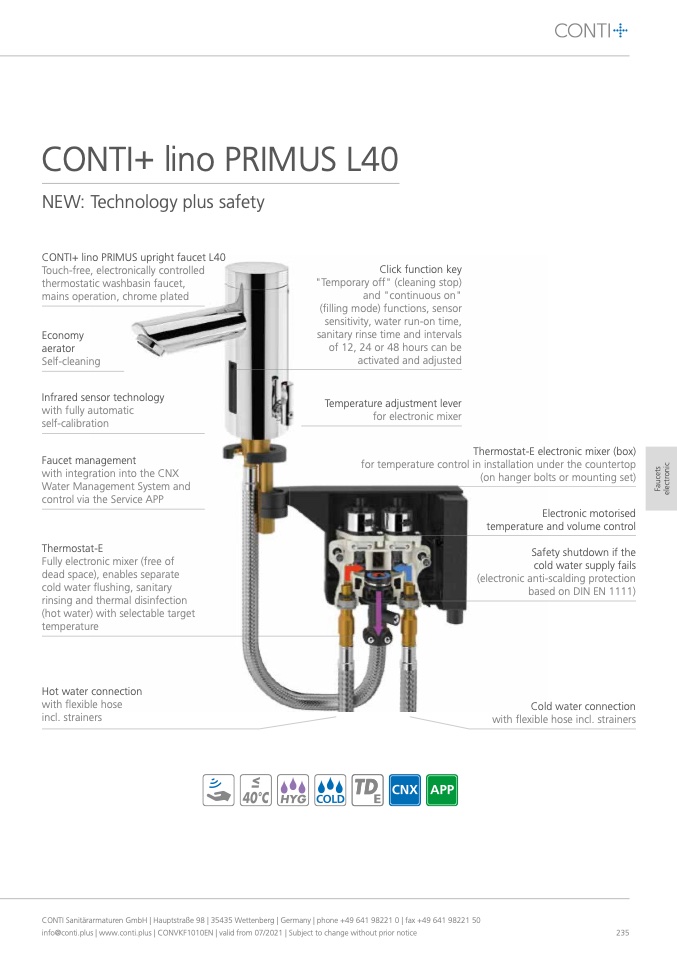

CONTI+ lino PRIMUS L40

NEW: Technology plus safety

CONTI+ lino PRIMUS upright faucet L40

Touch-free, electronically controlled

thermostatic washbasin faucet,

mains operation, chrome plated

Economy

aerator

Self-cleaning

Infrared sensor technology

with fully automatic

self-calibration

Faucet management

with integration into the CNX

Water Management System and

control via the Service APP

Thermostat-E

Fully electronic mixer (free of

dead space), enables separate

cold water flushing, sanitary

rinsing and thermal disinfection

(hot water) with selectable target

temperature

Hot water connection

with flexible hose

incl. strainers

Click function key

"Temporary off" (cleaning stop)

and "continuous on"

(filling mode) functions, sensor

sensitivity, water run-on time,

sanitary rinse time and intervals

of 12, 24 or 48 hours can be

activated and adjusted

Temperature adjustment lever

for electronic mixer

Thermostat-E electronic mixer (box)

for temperature control in installation under the countertop

(on hanger bolts or mounting set)

Electronic motorised

temperature and volume control

Safety shutdown if the

cold water supply fails

(electronic anti-scalding protection

based on DIN EN 1111)

Cold water connection

with flexible hose incl. strainers

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
