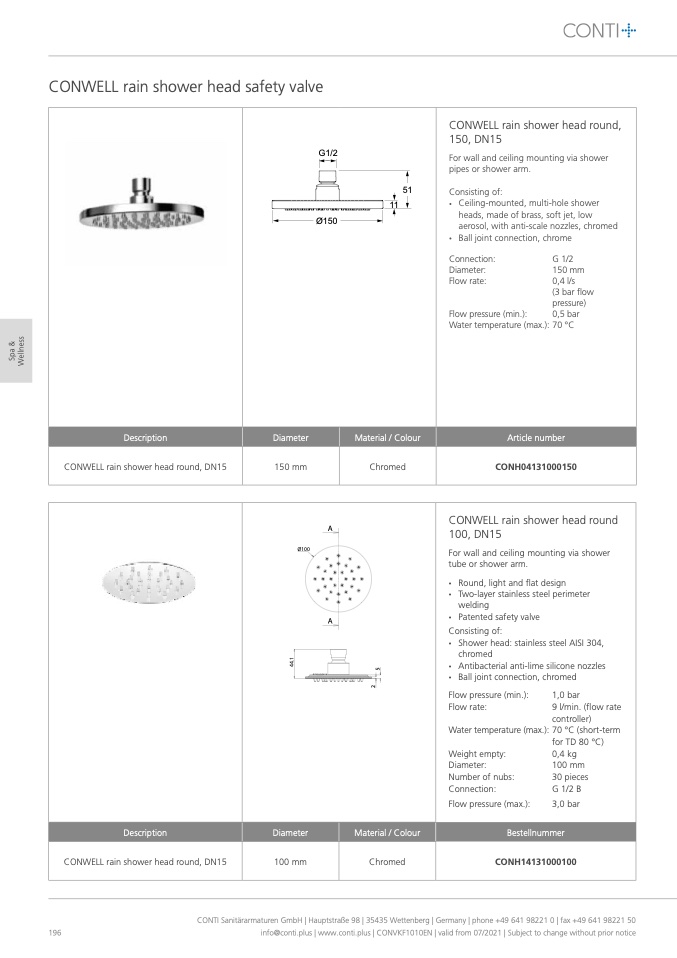

CONWELL rain shower head safety valve

196

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Description

CONWELL rain shower head round, DN15

Diameter

150 mm

Material / Colour

Chromed

Description

CONWELL rain shower head round, DN15

Diameter

100 mm

Material / Colour

Chromed

Bestellnummer

CONH14131000100

A

Ø100

G1/2

Ø150

51

11

CONWELL rain shower head round,

150, DN15

For wall and ceiling mounting via shower

pipes or shower arm.

Consisting of:

•

Ceiling-mounted, multi-hole shower

heads, made of brass, soft jet, low

aerosol, with anti-scale nozzles, chromed

•

Ball joint connection, chrome

Connection:

G 1/2

Diameter:

150 mm

Flow rate:

0,4 l/s

(3 bar flow

pressure)

Flow pressure (min.):

0,5 bar

Water temperature (max.): 70 °C

Article number

CONH04131000150

CONWELL rain shower head round

100, DN15

For wall and ceiling mounting via shower

tube or shower arm.

•

Round, light and flat design

•

Two-layer stainless steel perimeter

welding

•

Patented safety valve

Consisting of:

•

Shower head: stainless steel AISI 304,

chromed

•

Antibacterial anti-lime silicone nozzles

•

Ball joint connection, chromed

A

2

5

4

4

.

1

S

p

a

&

W

e

l

l

n

e

s

s

Flow pressure (min.):

Flow rate:

Water temperature (max.):

Weight empty:

Diameter:

Number of nubs:

Connection:

Flow pressure (max.):

1,0 bar

9 l/min. (flow rate

controller)

70 °C (short-term

for TD 80 °C)

0,4 kg

100 mm

30 pieces

G 1/2 B

3,0 bar
