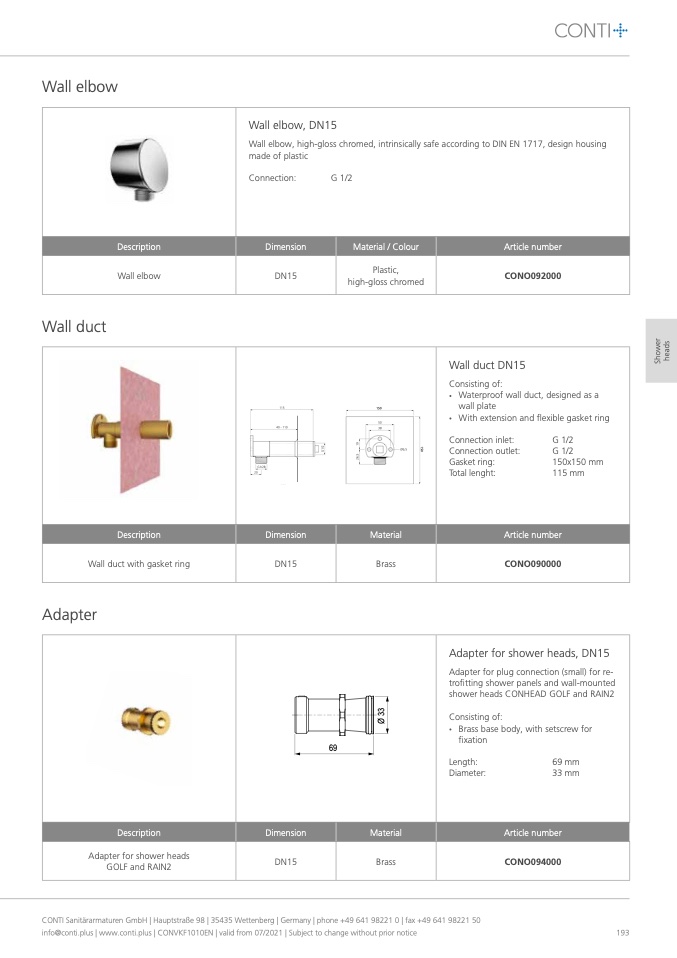

Wall elbow

Wall elbow, DN15

Wall elbow, high-gloss chromed, intrinsically safe according to DIN EN 1717, design housing

made of plastic

Connection:

G 1/2

Description

Dimension

Material / Colour

Article number

Wall elbow

DN15

Plastic,

high-gloss chromed

CONO092000

Wall duct

150

150

Wall duct DN15

Consisting of:

•

Waterproof wall duct, designed as a

wall plate

•

With extension and flexible gasket ring

Connection inlet:

Connection outlet:

Gasket ring:

Total lenght:

G 1/2

G 1/2

150x150 mm

115 mm

Description

Dimension

Material

Article number

Wall duct with gasket ring

DN15

Brass

CONO090000

Adapter

69

Adapter for shower heads, DN15

Adapter for plug connection (small) for re-

trofitting shower panels and wall-mounted

shower heads CONHEAD GOLF and RAIN2

Consisting of:

•

Brass base body, with setscrew for

fixation

Length:

69 mm

Diameter:

33 mm

Description

Dimension

Material

Article number

Adapter for shower heads

GOLF and RAIN2

DN15

Brass

CONO094000

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
