Conti - 2021-2022

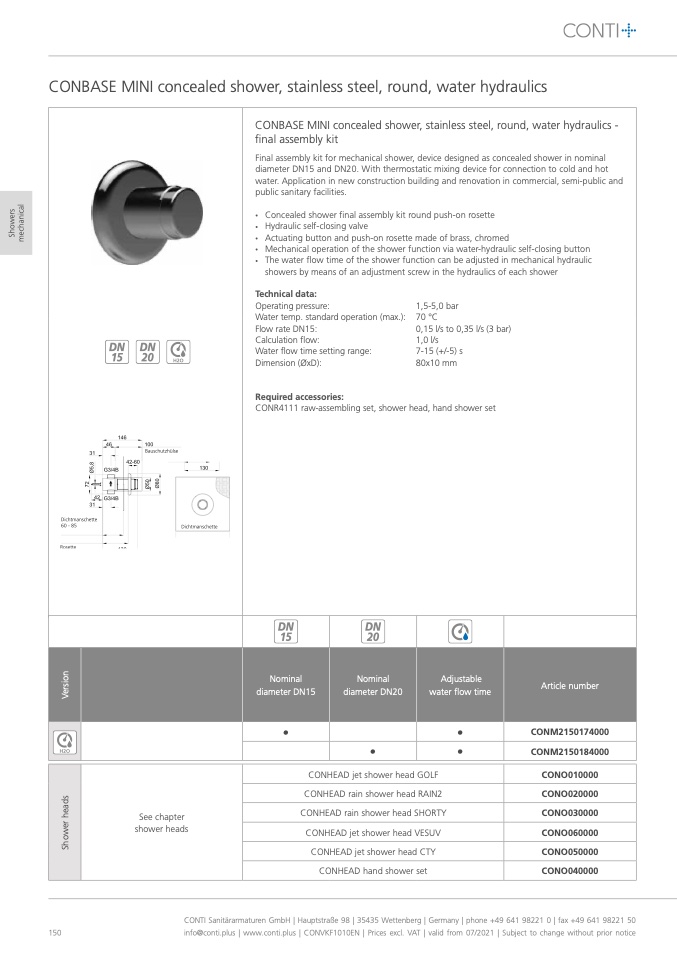

CONBASE MINI concealed shower, stainless steel, round, water hydraulics -

final assembly kit

Final assembly kit for mechanical shower, device designed as concealed shower in nominal

diameter DN15 and DN20. With thermostatic mixing device for connection to cold and hot

water. Application in new construction building and renovation in commercial, semi-public and

public sanitary facilities.

•

Concealed shower final assembly kit round push-on rosette

•

Hydraulic self-closing valve

•

Actuating button and push-on rosette made of brass, chromed

•

Mechanical operation of the shower function via water-hydraulic self-closing button

•

The water flow time of the shower function can be adjusted in mechanical hydraulic

showers by means of an adjustment screw in the hydraulics of each shower

Technical data:

Operating pressure:

Water temp. standard operation (max.):

Flow rate DN15:

Calculation flow:

Water flow time setting range:

Dimension (ØxD):

Required accessories:

1,5-5,0 bar

70 °C

0,15 l/s to 0,35 l/s (3 bar)

1,0 l/s

7-15 (+/-5) s

80x10 mm

CONR4111 raw-assembling set, shower head, hand shower set

Nominal

diameter DN15

Nominal

diameter DN20

Adjustable

water flow time

Article number

•

CONM2150174000

•

CONM2150184000

See chapter

shower heads

CONHEAD jet shower head GOLF

CONO010000

CONHEAD rain shower head RAIN2

CONO020000

CONHEAD rain shower head SHORTY

CONO030000

CONHEAD jet shower head VESUV

CONO060000

CONHEAD jet shower head CTY

CONO050000

CONHEAD hand shower set

CONO040000

CONBASE MINI concealed shower, stainless steel, round, water hydraulics

150
