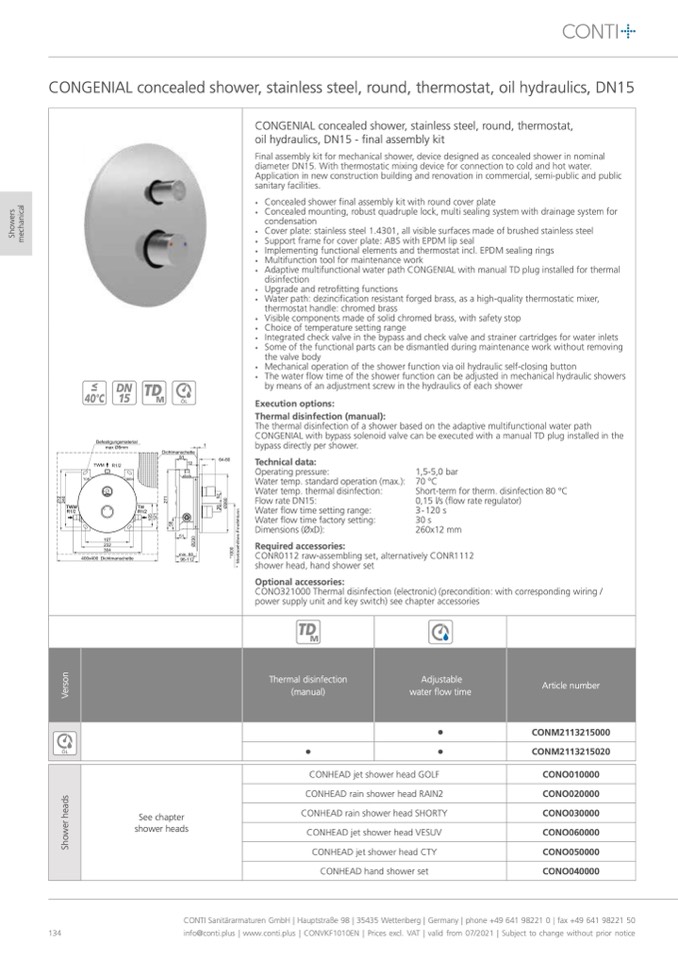

CONGENIAL concealed shower, stainless steel, round, thermostat, oil hydraulics, DN15

134

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | Prices excl. VAT | valid from 07/2021 | Subject to change without prior notice

See chapter

shower heads

CONHEAD jet shower head GOLF

CONHEAD rain shower head RAIN2

CONHEAD rain shower head SHORTY

CONHEAD jet shower head VESUV

CONHEAD jet shower head CTY

CONHEAD hand shower set

CONGENIAL concealed shower, stainless steel, round, thermostat,

oil hydraulics, DN15 - final assembly kit

Final assembly kit for mechanical shower, device designed as concealed shower in nominal

diameter DN15. With thermostatic mixing device for connection to cold and hot water.

Application in new construction building and renovation in commercial, semi-public and public

sanitary facilities.

•

Concealed shower final assembly kit with round cover plate

•

Concealed mounting, robust quadruple lock, multi sealing system with drainage system for

condensation

•

Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel

•

Support frame for cover plate: ABS with EPDM lip seal

•

Implementing functional elements and thermostat incl. EPDM sealing rings

•

Multifunction tool for maintenance work

•

Adaptive multifunctional water path CONGENIAL with manual TD plug installed for thermal

disinfection

•

Upgrade and retrofitting functions

•

Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer,

thermostat handle: chromed brass

•

Visible components made of solid chromed brass, with safety stop

•

Choice of temperature setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

Some of the functional parts can be dismantled during maintenance work without removing

the valve body

•

Mechanical operation of the shower function via oil hydraulic self-closing button

•

The water flow time of the shower function can be adjusted in mechanical hydraulic showers

by means of an adjustment screw in the hydraulics of each shower

Execution options:

Thermal disinfection (manual):

The thermal disinfection of a shower based on the adaptive multifunctional water path

CONGENIAL with bypass solenoid valve can be executed with a manual TD plug installed in the

bypass directly per shower.

Technical data:

Operating pressure:

Water temp. standard operation (max.):

Water temp. thermal disinfection:

Flow rate DN15:

Water flow time setting range:

Water flow time factory setting:

Dimensions (ØxD):

Required accessories:

1,5-5,0 bar

70 °C

Short-term for therm. disinfection 80 °C

0,15 l/s (flow rate regulator)

3-120s

30s

260x12 mm

CONR0112 raw-assembling set, alternatively CONR1112

shower head, hand shower set

Optional accessories:

CONO321000 Thermal disinfection (electronic) (precondition: with corresponding wiring /

power supply unit and key switch) see chapter accessories

Thermal disinfection

(manual)

•

Adjustable

water flow time

•

•

Article number

CONM2113215000

CONM2113215020

CONO010000

CONO020000

CONO030000

CONO060000

CONO050000

CONO040000
