220

85

0

C)

C

:::J

.c

UJ

E

1

0

0

C

L

O

0

Q)

T""

"

N

.c

T"""

N :Q

,1(

cn

.c

.c

Q)

0

CO

CO

+-'

C

Q

)

�

+-'

C

,1(

.c

C

0

.c

(.)

Q)

1..

.

0

Q

)

T"""

.

c

-.:;;!"

cn

cn

:::J

.c

(.

)

0

cn

C

T"""

<(

T"""

0

LO

CO

TWW

G1/2B

0

N

T"""

CO

150

TW

G1/2B

22

155

22

C)

C

0

LO

0

LO

N

T""

"

T"""

-.:;;!

"

L

O

LO

CO

TWW

TW

G1/2B

G1/2B

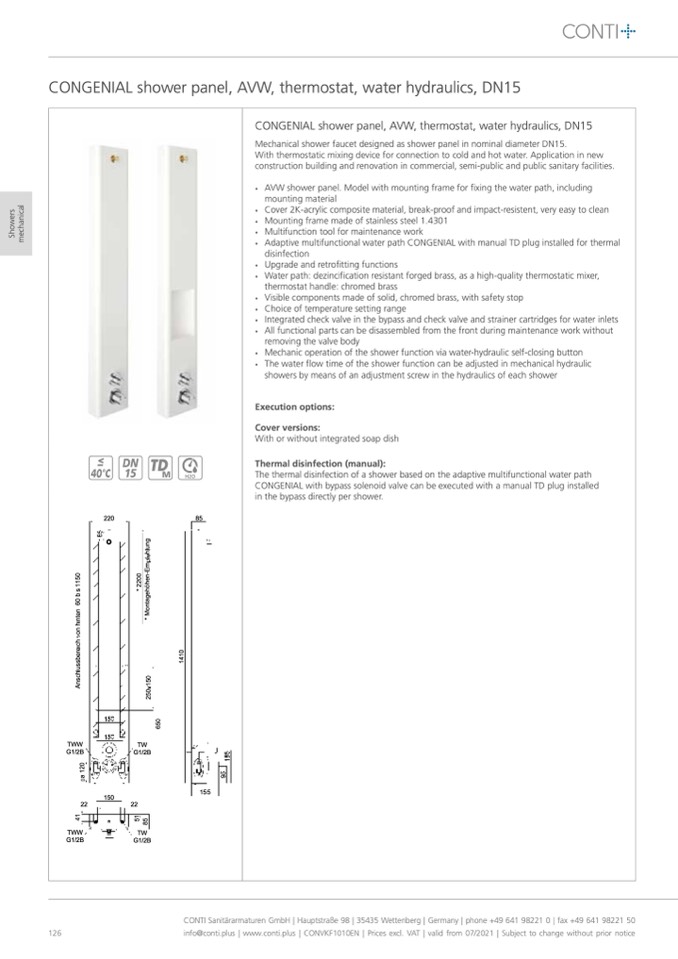

CONGENIAL shower panel, AVW, thermostat, water hydraulics, DN15

Mechanical shower faucet designed as shower panel in nominal diameter DN15.

With thermostatic mixing device for connection to cold and hot water. Application in new

construction building and renovation in commercial, semi-public and public sanitary facilities.

•

AVW shower panel. Model with mounting frame for fixing the water path, including

mounting material

•

Cover 2K-acrylic composite material, break-proof and impact-resistent, very easy to clean

•

Mounting frame made of stainless steel 1.4301

•

Multifunction tool for maintenance work

•

Adaptive multifunctional water path CONGENIAL with manual TD plug installed for thermal

disinfection

•

Upgrade and retrofitting functions

•

Water path: dezincification resistant forged brass, as a high-quality thermostatic mixer,

thermostat handle: chromed brass

•

Visible components made of solid, chromed brass, with safety stop

•

Choice of temperature setting range

•

Integrated check valve in the bypass and check valve and strainer cartridges for water inlets

•

All functional parts can be disassembled from the front during maintenance work without

removing the valve body

•

Mechanic operation of the shower function via water-hydraulic self-closing button

•

The water flow time of the shower function can be adjusted in mechanical hydraulic

showers by means of an adjustment screw in the hydraulics of each shower

Execution options:

Cover versions:

With or without integrated soap dish

Thermal disinfection (manual):

The thermal disinfection of a shower based on the adaptive multifunctional water path

CONGENIAL with bypass solenoid valve can be executed with a manual TD plug installed

in the bypass directly per shower.

CONGENIAL shower panel, AVW, thermostat, water hydraulics, DN15

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

126

info@conti.plus | www.conti.plus | CONVKF1010EN | Prices excl. VAT | valid from 07/2021 | Subject to change without prior notice
