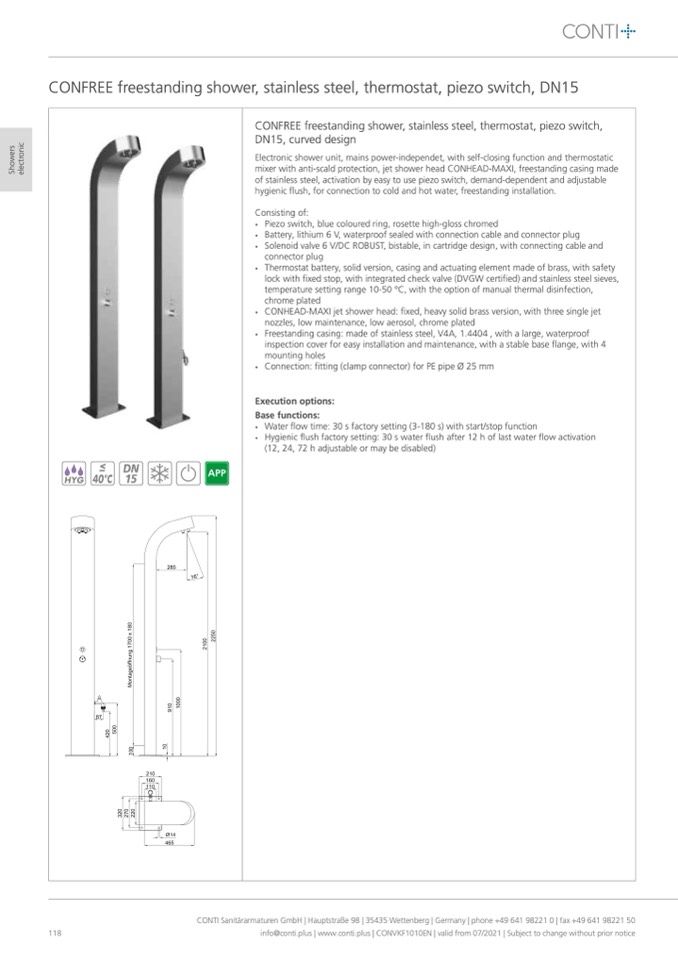

CONFREE freestanding shower, stainless steel, thermostat, piezo switch,

DN15, curved design

Electronic shower unit, mains power-independet, with self-closing function and thermostatic

mixer with anti-scald protection, jet shower head CONHEAD-MAXI, freestanding casing made

of stainless steel, activation by easy to use piezo switch, demand-dependent and adjustable

hygienic flush, for connection to cold and hot water, freestanding installation.

Consisting of:

•

Piezo switch, blue coloured ring, rosette high-gloss chromed

•

Battery, lithium 6 V, waterproof sealed with connection cable and connector plug

•

Solenoid valve 6 V/DC ROBUST, bistable, in cartridge design, with connecting cable and

connector plug

•

Thermostat battery, solid version, casing and actuating element made of brass, with safety

lock with fixed stop, with integrated check valve (DVGW certified) and stainless steel sieves,

temperature setting range 10-50 °C, with the option of manual thermal disinfection,

chrome plated

•

CONHEAD-MAXI jet shower head: fixed, heavy solid brass version, with three single jet

nozzles, low maintenance, low aerosol, chrome plated

•

Freestanding casing: made of stainless steel, V4A, 1.4404 , with a large, waterproof

inspection cover for easy installation and maintenance, with a stable base flange, with 4

mounting holes

•

Connection: fitting (clamp connector) for PE pipe Ø 25 mm

Execution options:

Base functions:

•

Water flow time: 30 s factory setting (3-180 s) with start/stop function

•

Hygienic flush factory setting: 30 s water flush after 12 h of last water flow activation

(12, 24, 72 h adjustable or may be disabled)

CONFREE freestanding shower, stainless steel, thermostat, piezo switch, DN15

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

118

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice
