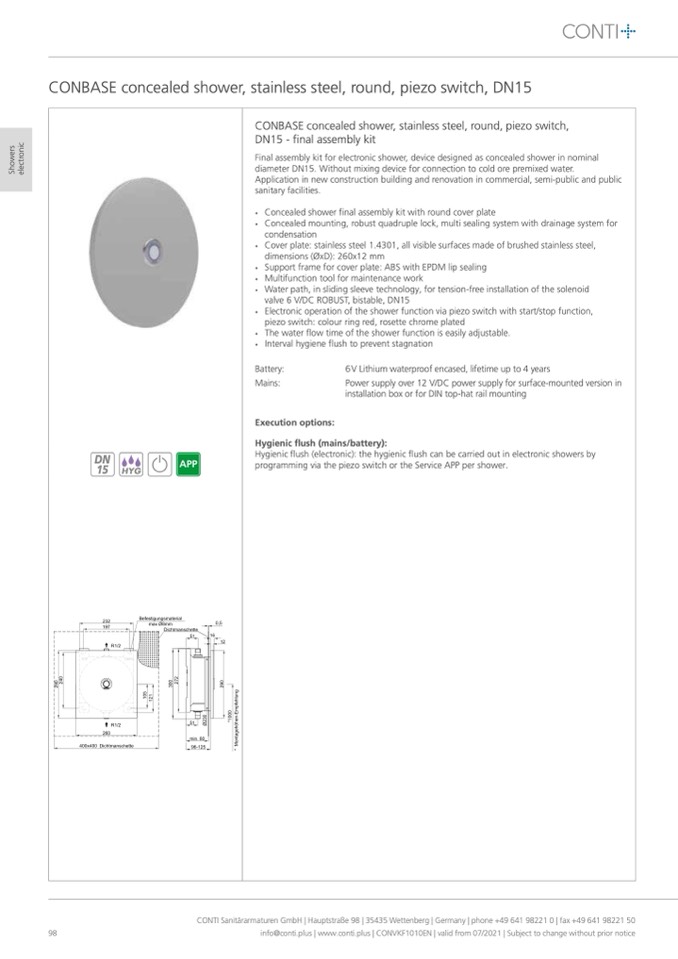

CONBASE concealed shower, stainless steel, round, piezo switch, DN15

S

h

o

w

e

r

s

e

l

e

c

t

r

o

n

i

c

98

CONTI Sanitärarmaturen GmbH | Hauptstraße 98 | 35435 Wettenberg | Germany | phone +49 641 98221 0 | fax +49 641 98221 50

info@conti.plus | www.conti.plus | CONVKF1010EN | valid from 07/2021 | Subject to change without prior notice

Sealing collar

Mounting material

CONBASE concealed shower, stainless steel, round, piezo switch,

DN15 - final assembly kit

Final assembly kit for electronic shower, device designed as concealed shower in nominal

diameter DN15. Without mixing device for connection to cold ore premixed water.

Application in new construction building and renovation in commercial, semi-public and public

sanitary facilities.

•

Concealed shower final assembly kit with round cover plate

•

Concealed mounting, robust quadruple lock, multi sealing system with drainage system for

condensation

•

Cover plate: stainless steel 1.4301, all visible surfaces made of brushed stainless steel,

dimensions (ØxD): 260x12 mm

•

Support frame for cover plate: ABS with EPDM lip sealing

•

Multifunction tool for maintenance work

•

Water path, in sliding sleeve technology, for tension-free installation of the solenoid

valve 6 V/DC ROBUST, bistable, DN15

•

Electronic operation of the shower function via piezo switch with start/stop function,

piezo switch: colour ring red, rosette chrome plated

•

The water flow time of the shower function is easily adjustable.

•

Interval hygiene flush to prevent stagnation

Battery:

6 V Lithium waterproof encased, lifetime up to 4 years

Mains:

Power supply over 12 V/DC power supply for surface-mounted version in

installation box or for DIN top-hat rail mounting

Execution options:

Hygienic flush (mains/battery):

Hygienic flush (electronic): the hygienic flush can be carried out in electronic showers by

programming via the piezo switch or the Service APP per shower.
