Profile type

8 mm Profile thickness

12 mm Profile thickness

E23

E9

metallic-line 20

metallic-line 25

SE26

E4

metallic-line

decor-line

color-line

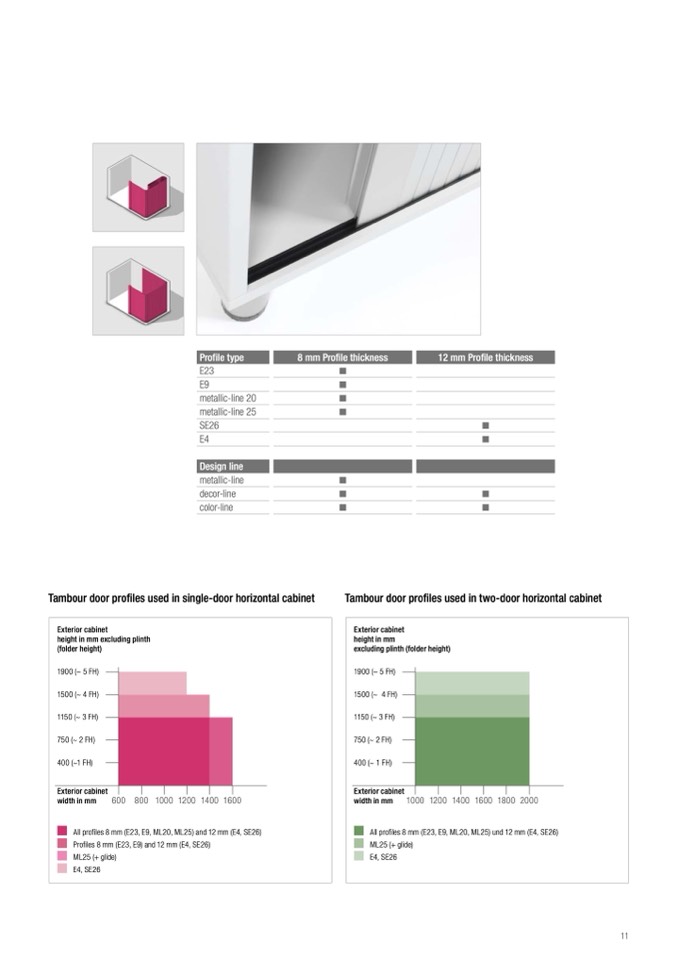

Tambour door profiles used in single-door horizontal cabinet

Tambour door profiles used in two-door horizontal cabinet

Design line

Exterior cabinet

height in mm excluding plinth

(folder height)

1900 (~ 5 FH)

1500 (~ 4 FH)

1150 (~ 3 FH)

750 (~ 2 FH)

400 (~1 FH)

Exterior cabinet

width in mm

600 800

1000 1200 1400 1600

All profiles 8 mm (E23, E9, ML20, ML25) and 12 mm (E4, SE26)

Profiles 8 mm (E23, E9) and 12 mm (E4, SE26)

ML25 (+ glide)

E4, SE26

Exterior cabinet

height in mm

excluding plinth (folder height)

1900 (~ 5 FH)

1500 (~ 4 FH)

1150 (~ 3 FH)

750 (~ 2 FH)

400 (~ 1 FH)

Exterior cabinet

width in mm

1000 1200 1400 1600 1800 2000

All profiles 8 mm (E23, E9, ML20, ML25) und 12 mm (E4, SE26)

ML25 (+ glide)

E4, SE26

11
