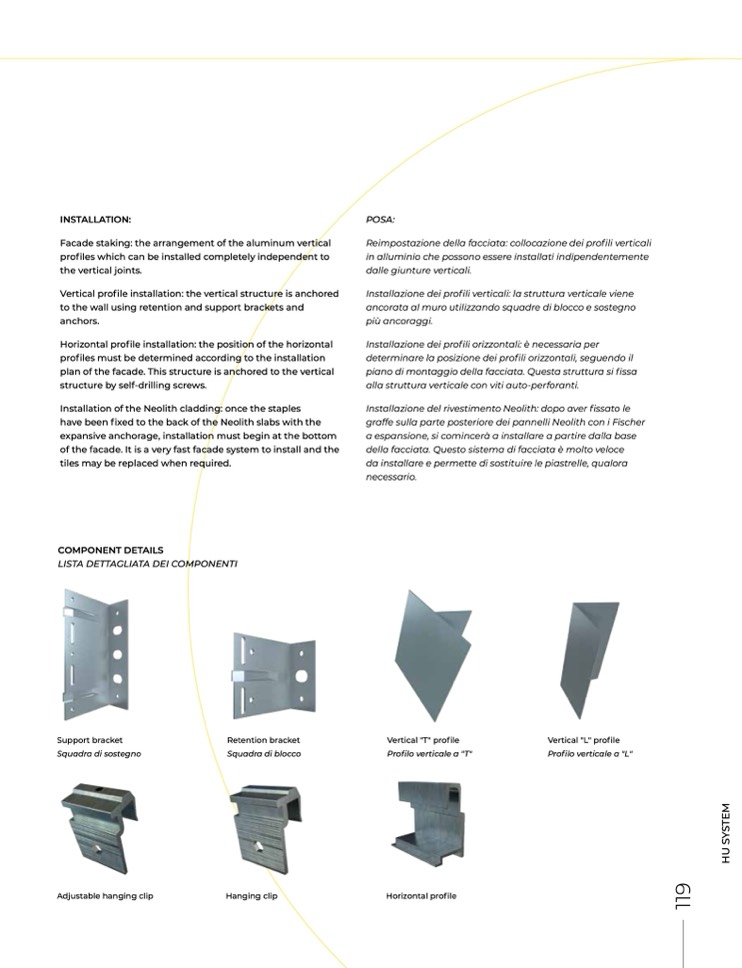

INSTALLATION:

Facade staking: the arrangement of the aluminum vertical

profiles which can be installed completely independent to

the vertical joints.

Vertical profile installation: the vertical structure is anchored

to the wall using retention and support brackets and

anchors.

Horizontal profile installation: the position of the horizontal

profiles must be determined according to the installation

plan of the facade. This structure is anchored to the vertical

structure by self-drilling screws.

Installation of the Neolith cladding: once the staples

have been fixed to the back of the Neolith slabs with the

expansive anchorage, installation must begin at the bottom

of the facade. It is a very fast facade system to install and the

tiles may be replaced when required.

COMPONENT DETAILS

LISTA DETTAGLIATA DEI COMPONENTI

POSA:

Reimpostazione della facciata: collocazione dei profili verticali

in alluminio che possono essere installati indipendentemente

dalle giunture verticali.

Installazione dei profili verticali: la struttura verticale viene

ancorata al muro utilizzando squadre di blocco e sostegno

più ancoraggi.

Installazione dei profili orizzontali: è necessaria per

determinare la posizione dei profili orizzontali, seguendo il

piano di montaggio della facciata. Questa struttura si fissa

alla struttura verticale con viti auto-perforanti.

Installazione del rivestimento Neolith: dopo aver fissato le

graffe sulla parte posteriore dei pannelli Neolith con i Fischer

a espansione, si comincerà a installare a partire dalla base

della facciata. Questo sistema di facciata è molto veloce

da installare e permette di sostituire le piastrelle, qualora

necessario.

Support bracket

Squadra di sostegno

Retention bracket

Squadra di blocco

Vertical "T" profile

Profilo verticale a "T"

Vertical "L" profile

Profilo verticale a "L"

Adjustable hanging clip

Hanging clip

Horizontal profile
