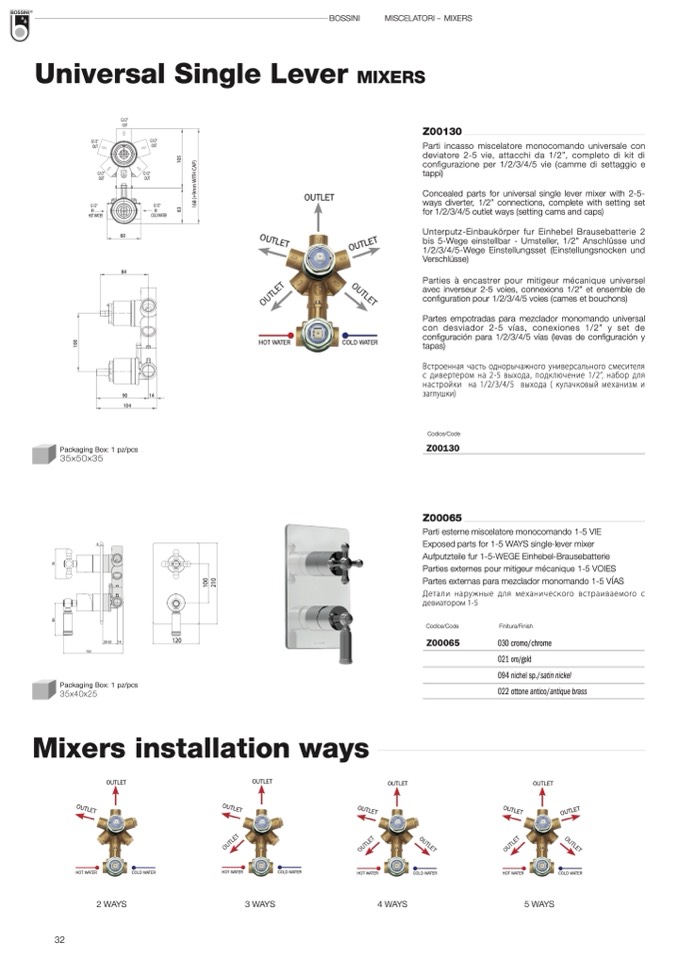

Universal Single Lever
MIXERS
90
14
60
104
84
32
G1/2"
OUT
G1/2"
OUT
G1/2"
IN
HOT WATER
G1/2"
OUT
G1/2"
OUT
G1/2"
IN
COLD
WATER
OUTLET
90
14
104
Packaging Box: 1 pz/pcs
35x50x35
6
6
30-5530-5154
14
120120
Codice/Code
Z00065
Finitura/Finish
030 cromo/chrome
021 oro/gold
094 nichel sp./satin nickel
022 ottone antico/antique brass
OUTLET
153 153
Packaging Box: 1 pz/pcs
35x40x25
G1/2"
OUT
Z00130
Parti incasso miscelatore monocomando universale con
deviatore 2-5 vie, attacchi da 1/2”, completo di kit di
configurazione per 1/2/3/4/5 vie (camme di settaggio e
tappi)
Concealed parts for universal single lever mixer with 2-5-
ways diverter, 1/2” connections, complete with setting set
for 1/2/3/4/5 outlet ways (setting cams and caps)
Unterputz-Einbaukörper fur Einhebel Brausebatterie 2
bis 5-Wege einstellbar - Umsteller, 1/2” Anschlüsse und
1/2/3/4/5-Wege Einstellungsset (Einstellungsnocken und
Verschlüsse)
Parties à encastrer pour mitigeur mécanique universel
avec inverseur 2-5 voies, connexions 1/2” et ensemble de
configuration pour 1/2/3/4/5 voies (cames et bouchons)
Partes empotradas para mezclador monomando universal
con desviador 2-5 vías, conexiones 1/2” y set de
configuración para 1/2/3/4/5 vías (levas de configuración y
tapas)
Встроенная часть однорычажного универсального смесителя
с дивертером на 2-5 выхода, подключение 1/2”, набор для
настройки на 1/2/3/4/5 выхода ( кулачковый механизм и
заглушки)
Codice/Code
Z00130
Z00065
Parti esterne miscelatore monocomando 1-5 VIE
Exposed parts for 1-5 WAYS single-lever mixer
Aufputzteile fur 1-5-WEGE Einhebel-Brausebatterie
Parties externes pour mitigeur mécanique 1-5 VOIES
Partes externas para mezclador monomando 1-5 VÍAS
Детали наружные для механическoro встраиваемoro с
девиатором 1-5
Mixers installation ways
HOT WATER
COLD WATER
HOT WATER
COLD WATER
HOT WATER
COLD WATER
HOT WATER
COLD WATER
OUTLET
OUTLET
OUTLET
2 WAYS
3 WAYS
4 WAYS
5 WAYS
G1/2"
OUT
G1/2"
OUT
G1/2"
IN
HOT WATER
G1/2"
OUT
60
G1/2"
OUT
G1/2"
OUT
HOT WATER
G1/2"
IN
COLD
WATER
COLD WATER
BOSSINI
MISCELATORI – MIXERS
OUTLET
OUTLET
OUTLET
O
