BOSSINI
MISCELATORI – MIXERS

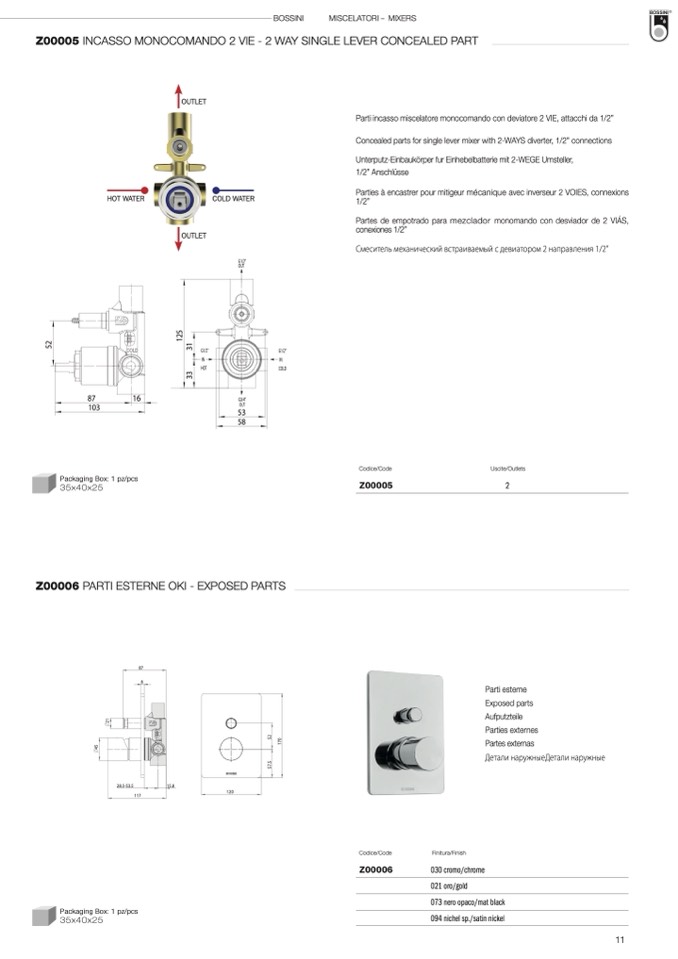

Z00005 INCASSO MONOCOMANDO 2 VIE - 2 WAY SINGLE LEVER CONCEALED PART
87
87
16
103
103
16
Packaging Box: 1 pz/pcs
35x40x25
Codice/Code
Z00005
Uscite/Outlets
2
HOT WATER
OUTLET
OUTLET
G1/2"
IN
HOT
COLD WATER
G1/2"
OUT
G1/2"
IN
HOT
G3/4"
OUT
53
58
Parti incasso miscelatore monocomando con deviatore 2 VIE, attacchi da 1/2”
Concealed parts for single lever mixer with 2-WAYS diverter, 1/2” connections
Unterputz-Einbaukörper fur Einhebelbatterie mit 2-WEGE Umsteller,
1/2” Anschlüsse
Parties à encastrer pour mitigeur mécanique avec inverseur 2 VOIES, connexions
1/2”
Partes de empotrado para mezclador monomando con desviador de 2 VIÁS,
conexiones 1/2”
Смеситель механический встраиваемый с девиатором 2 направления 1/2”
Z00006 PARTI ESTERNE OKI - EXPOSED PARTS
87
6
117
Packaging Box: 1 pz/pcs
35x40x25
Parti esterne
Exposed parts
Aufputzteile
Parties externes
Partes externas
Детали наружныеДетали наружные
28.5-53.5
15.8
120
G1/2"
OUT
G3/4"
OUT
53
58
G1/2"
IN
G1/2"
COLD
IN
COLD
n
4
5
n
2
1
5
7
.
5
5
2
1
7
0
1
2
5
3
3
3
1
1
2
5
3
3
3
1
5
2
5
2
Codice/Code
Z00006
Finitura/Finish
030 cromo/chrome
021 oro/gold
073 nero opaco/mat black
094 nichel sp./satin nickel
11
