Technical details

FSR 4.140

FLEXWELL Safety Pipe

FLEXWELL Safety Pipe

with stainless steel inner pipe, stainless steel armouring, stainless steel outer pipe, (bitumen) and

PE casing – on request

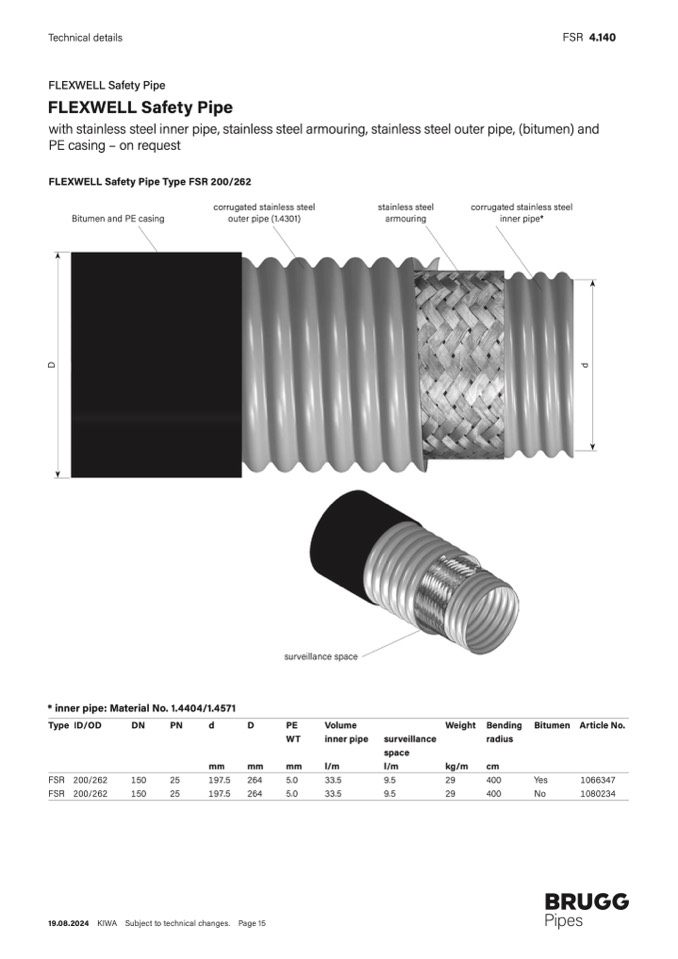

FLEXWELL Safety Pipe Type FSR 200/262

corrugated stainless steel

Bitumen and PE casing

outer pipe (1.4301)

stainless steel

armouring

corrugated stainless steel

inner pipe*

surveillance space

* inner pipe: Material No. 1.4404/1.4571

Type ID/OD

DN

PN

d

D

PE

Volume

WT

inner pipe

Weight

Bending

radius

Bitumen

Article No.

space

m

m

m

m

m

m

l/m

l/m

kg/

m

cm

FSR 200/262

150

25

197.5

264

5.0

33.5

9.5

29

400

Yes

1066347

FSR 200/262

150

25

197.5

264

5.0

33.5

9.5

29

400

No

1080234

19.08.2024 KIWA Subject to technical changes. Page 15

surveillance

D

d
