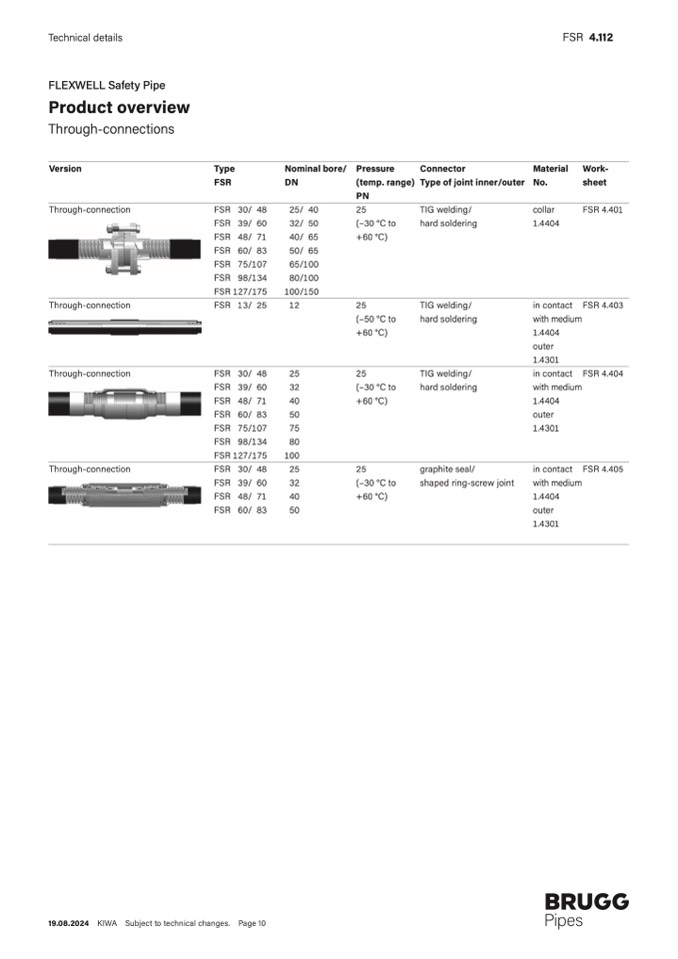

Technical details
FSR 4.112
FLEXWELL Safety Pipe
Product overview
Through-connections
Version
Through-connection
Through-connection
Through-connection
Through-connection
Type
FSR
FSR 30/ 48
FSR 39/ 60
FSR 48/ 71
FSR 60/ 83
FSR 75/107
FSR 98/134
FSR 127/175
FSR 13/ 25
FSR 30/ 48
FSR 39/ 60
FSR 48/ 71
FSR 60/ 83
FSR 75/107
FSR 98/134
FSR 127/175
FSR 30/ 48
FSR 39/ 60
FSR 48/ 71
FSR 60/ 83
Nominal bore/
DN
25/ 40
32/ 50
40/ 65
50/ 65
65/100
80/100
100/150
12
25
32
40
50
75
80
100
25
32
40
50
Pressure
(temp. range)
PN
25
(–30 °C
+60 °C)
Connector
Type of joint inner/outer
TIG welding/
hard soldering
TIG welding/
hard soldering
TIG welding/
hard soldering
graphite seal/
shaped ring-screw joint
Material
No.
collar
1.4404
in contact
with medium
1.4404
outer
1.4301
in contact
with medium
1.4404
outer
1.4301
in contact
with medium
1.4404
outer
1.4301
Work-
sheet
FSR 4.401
FSR 4.403
FSR 4.404
FSR 4.405
25
(–50 °C
+60 °C)
25
(–30 °C
+60 °C)
25
(–30 °C
+60 °C)
to
to
to
to
19.08.2024 KIWA Subject to technical changes.
Page 10
