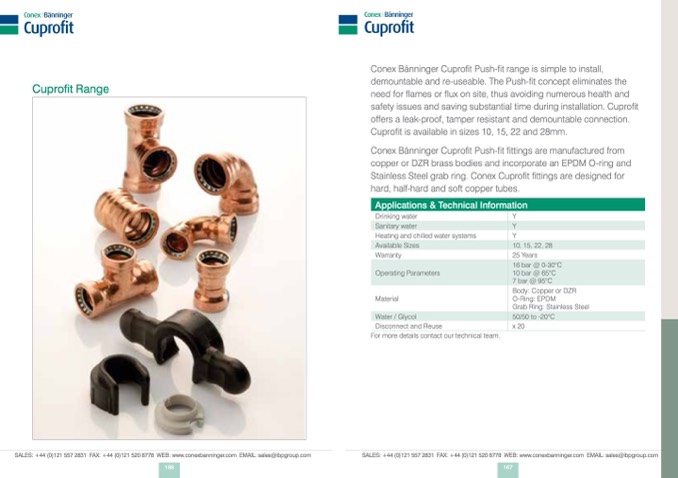

Cuprofit Range

Conex Bänninger Cuprofit Push-fit range is simple to install,

demountable and re-useable. The Push-fit concept eliminates the

need for flames or flux on site, thus avoiding numerous health and

safety issues and saving substantial time during installation. Cuprofit

offers a leak-proof, tamper resistant and demountable connection.

Cuprofit is available in sizes 10, 15, 22 and 28mm.

Conex Bänninger Cuprofit Push-fit fittings are manufactured from

copper or DZR brass bodies and incorporate an EPDM O-ring and

Stainless Steel grab ring. Conex Cuprofit fittings are designed for

hard, half-hard and soft copper tubes.

Applications & Technical Information

Drinking water

Heating and chilled water systems

Warranty

Material

Water / Glycol

Disconnect and Reuse

For more details contact our technical team.

Y

Y

Y

10, 15, 22, 28

25 Years

Body: Copper or DZR

O-Ring: EPDM

Grab Ring: Stainless Steel

50/50 to -20°C

x 20

Operating Parameters

16 bar @ 0-30°C

10 bar @ 65°C

7 bar @ 95°C

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

166

Sanitary water

Available Sizes

167
