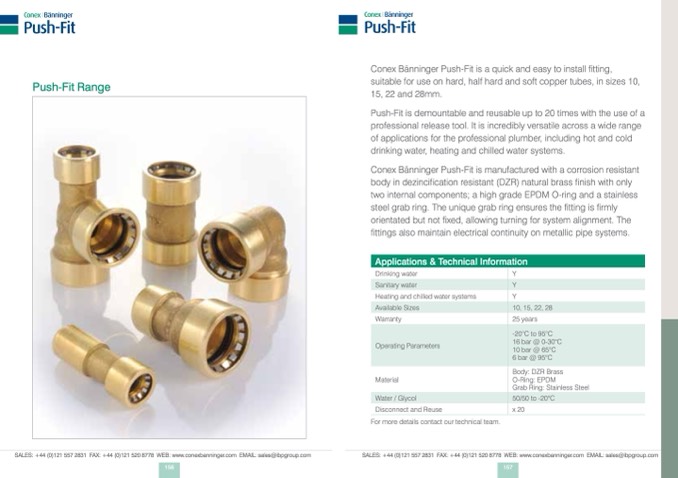

Push-Fit Range

Conex Bänninger Push-Fit is a quick and easy to install fitting,

suitable for use on hard, half hard and soft copper tubes, in sizes 10,

15, 22 and 28mm.

Push-Fit is demountable and reusable up to 20 times with the use of a

professional release tool. It is incredibly versatile across a wide range

of applications for the professional plumber, including hot and cold

drinking water, heating and chilled water systems.

Conex Bänninger Push-Fit is manufactured with a corrosion resistant

body in dezincification resistant (DZR) natural brass finish with only

two internal components; a high grade EPDM O-ring and a stainless

steel grab ring. The unique grab ring ensures the fitting is firmly

orientated but not fixed, allowing turning for system alignment. The

fittings also maintain electrical continuity on metallic pipe systems.

Applications & Technical Information

Drinking water

Heating and chilled water systems

Warranty

Material

Disconnect and Reuse

Y

Y

Y

10, 15, 22, 28

25 years

Body: DZR Brass

O-Ring: EPDM

Grab Ring: Stainless Steel

x 20

Water / Glycol

50/50 to -20°C

For more details contact our technical team.

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

156

Sanitary water

Available Sizes

Operating Parameters

157

-20°C to 95°C

16 bar @ 0-30°C

10 bar @ 65°C

6 bar @ 95°C
