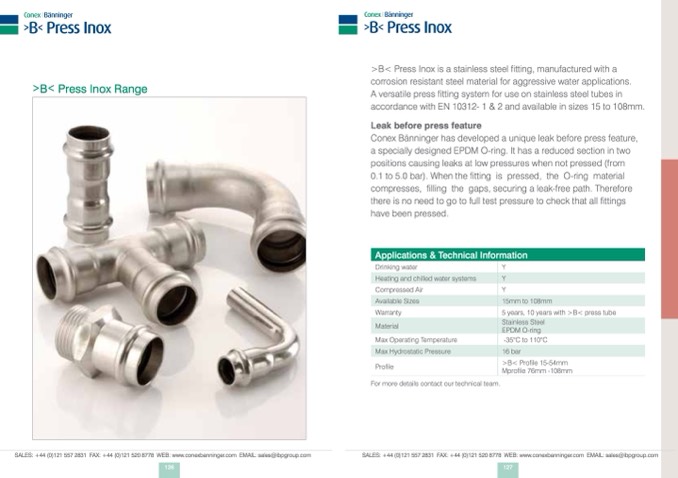

>B< Press Inox Range

>B< Press Inox is a stainless steel fitting, manufactured with a

corrosion resistant steel material for aggressive water applications.

A versatile press fitting system for use on stainless steel tubes in

accordance with EN 10312- 1 & 2 and available in sizes 15 to 108mm.

Leak before press feature

Conex Bänninger has developed a unique leak before press feature,

a specially designed EPDM O-ring. It has a reduced section in two

positions causing leaks at low pressures when not pressed (from

0.1 to 5.0 bar). When the fitting is pressed, the O-ring material

compresses, filling the gaps, securing a leak-free path. Therefore

there is no need to go to full test pressure to check that all fittings

have been pressed.

Applications & Technical Information

Drinking water

Compressed Air

Warranty

Max Operating Temperature

Y

Y

Y

15mm to 108mm

5 years, 10 years with >B< press tube

-35°C to 110°C

>B< Profile 15-54mm

Mprofile 76mm -108mm

Max Hydrostatic Pressure

16 bar

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

Heating and chilled water systems

Available Sizes

126

Material

Profile

For more details contact our technical team.

Stainless Steel

EPDM O-ring
