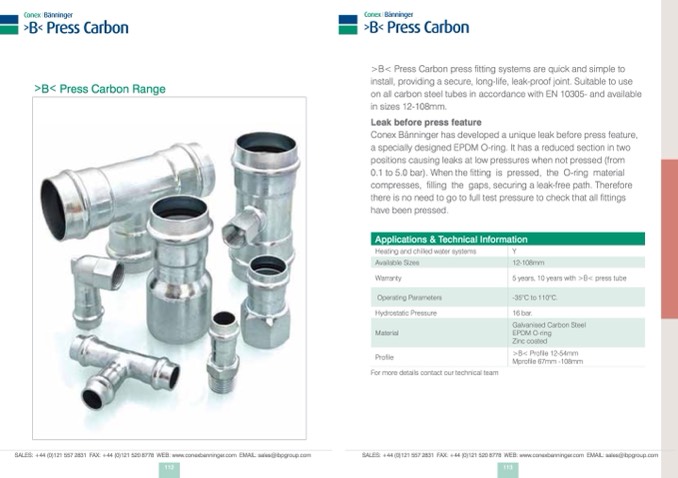

>B< Press Carbon Range
>B< Press Carbon press fitting systems are quick and simple to
install, providing a secure, long-life, leak-proof joint. Suitable to use
on all carbon steel tubes in accordance with EN 10305- and available
in sizes 12-108mm.
Leak before press feature
Conex Bänninger has developed a unique leak before press feature,
a specially designed EPDM O-ring. It has a reduced section in two
positions causing leaks at low pressures when not pressed (from
0.1 to 5.0 bar). When the fitting is pressed, the O-ring material
compresses, filling the gaps, securing a leak-free path. Therefore
there is no need to go to full test pressure to check that all fittings
have been pressed.
Applications & Technical Information
Heating and chilled water systems
Warranty
Hydrostatic Pressure
Profile
For more details contact our technical team
Y
12-108mm
5 years, 10 years with >B< press tube
-35°C to 110°C.
16 bar.
>B< Profile 12-54mm
Mprofile 67mm -108mm
Material
Galvanised Carbon Steel
EPDM O-ring
Zinc coated
SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com
SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com
112
Available Sizes
Operating Parameters
