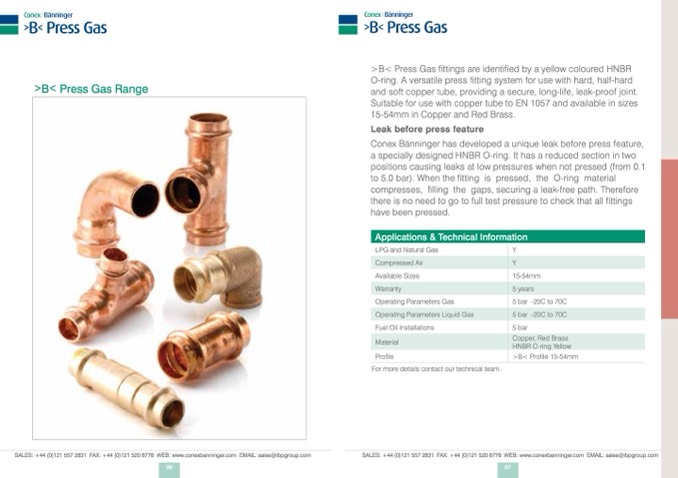

>B< Press Gas Range

>B< Press Gas fittings are identified by a yellow coloured HNBR

O-ring. A versatile press fitting system for use with hard, half-hard

and soft copper tube, providing a secure, long-life, leak-proof joint.

Suitable for use with copper tube to EN 1057 and available in sizes

15-54mm in Copper and Red Brass.

Leak before press feature

Conex Bänninger has developed a unique leak before press feature,

a specially designed HNBR O-ring. It has a reduced section in two

positions causing leaks at low pressures when not pressed (from 0.1

to 5.0 bar). When the fitting is pressed, the O-ring material

compresses, filling the gaps, securing a leak-free path. Therefore

there is no need to go to full test pressure to check that all fittings

have been pressed.

Applications & Technical Information

LPG and Natural Gas

Available Sizes

Operating Parameters Gas

Fuel Oil Installations

Profile

For more details contact our technical team.

15-54mm

5 years

5 bar -20C to 70C

5 bar

>B< Profile 15-54mm

Material

Copper, Red Brass

HNBR O-ring Yellow

SALES: +44 (0)121 557 2831 FAX: +44 (0)121 520 8778 WEB: www.conexbanninger.com EMAIL: sales@ibpgroup.com

Compressed Air

Warranty

Operating Parameters Liquid Gas
